Connecting the NZXT SwitchMix

Have more questions? Submit a request

This guide will cover connecting your NZXT SwitchMix to your PC, as well as your headset and speakers through the SwitchMix.  If you already have the SwitchMix hooked up correctly and need help setting it up in Windows, please check out our guide here:

NZXT Support - Setting up your NZXT SwitchMix in Windows

Connecting the SwitchMix is a fairly straightforward process, as there are only 4 cables in total that will need to be connected for full functionality.  In your box, you will find the following:

  • The NZXT SwitchMix Mixer
  • The NZXT SwitchMix Headphone Stand
  • 1x USB Type-A to Type C Cable
  • The NZXT SwitchMix User's Manual

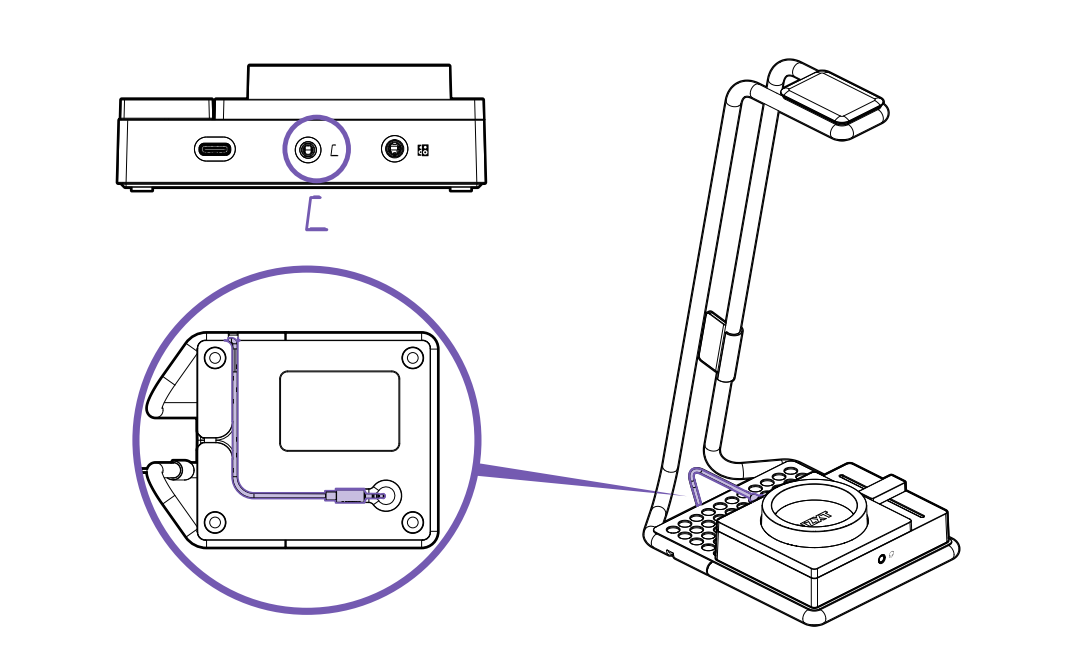

With the Mixer and Headphone Stand unboxed, check the underside of the Headphone Stand to find the 2.5mm cable shown above.  Remove the cable from the 2.5mm jack end and route the cable using the included channels to exit the rear of the stand.  From here, place the Mixer on top of the stand and connect the 2.5mm cable to the center port on the rear of the Mixer.

If you are not planning to use the Headphone Stand, you can skip this step.

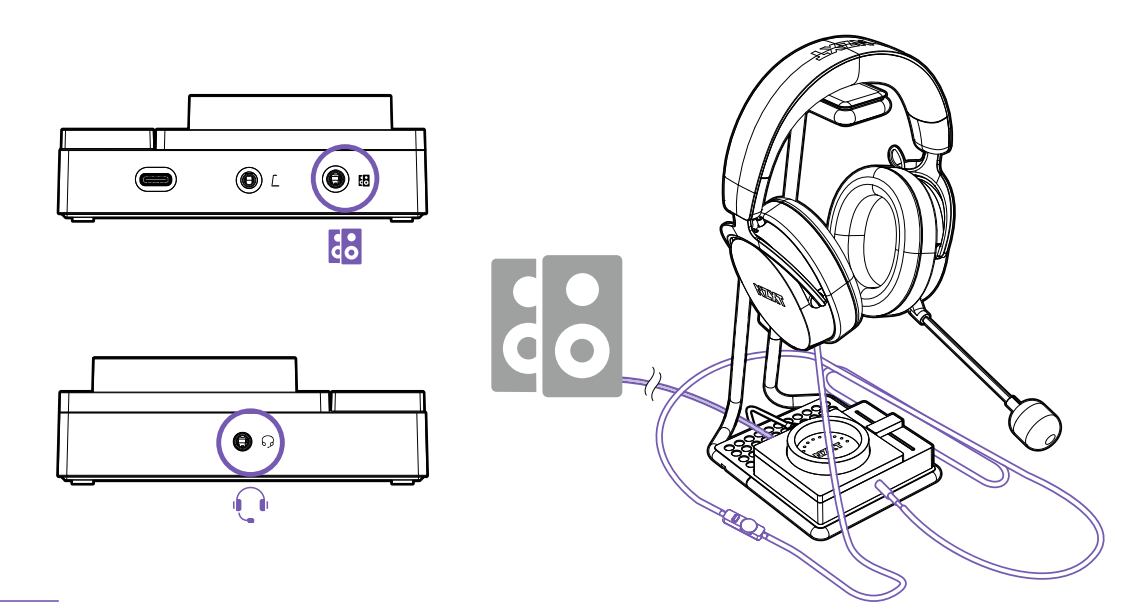

To connect your Speakers, locate the 3.5mm Speaker port on the rear of the Mixer to the right (furthest from the USB Type-C) and insert the 3.5mm cable from your Speakers until you feel the cable click securely into place.

To connect your Headphones, locate the 3.5mm Headphone port at the front of the Mixer and insert the 3.5mm cable from your Headphones until you feel the cable click securely into place.

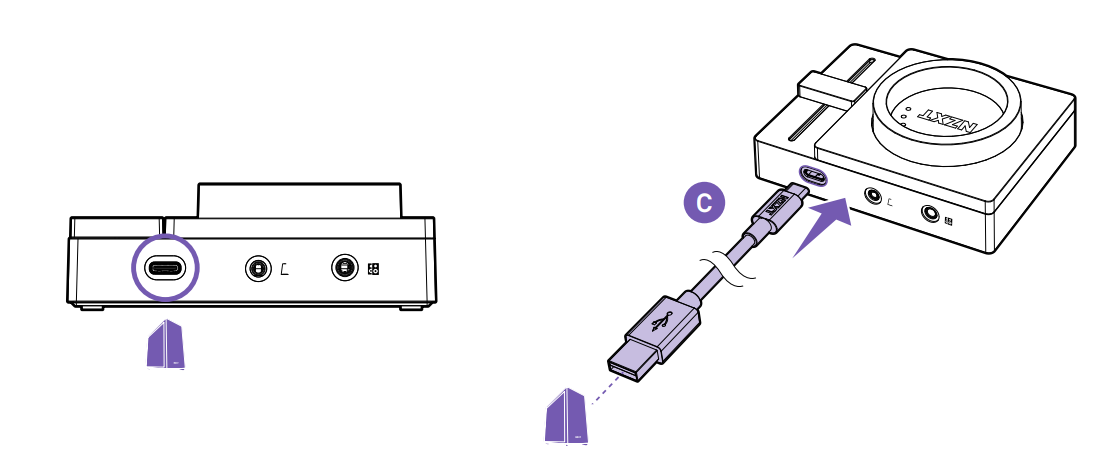

Lastly, locate the USB Type-C connection on the rear of the Mixer and connect the included USB Type-C to USB Type-A cable, then plug the Mixer to an open USB Port  on your PC.  It is recommended to use a USB 3.0 or higher port for connecting the SwitchMix.  These are generally going to be either Blue or Red depending on your motherboard.

Once connected, please check out our guide for setting up the NZXT SwitchMix in Windows at the following link:

NZXT Support - Setting up your NZXT SwitchMix in Windows
