NZXT Capsule Microphone FAQ

Have more questions? Submit a request

Does the NZXT Capsule support XLR connections or mixers?

The Capsule is a standalone microphone that connects to your PC via USB using the included USB Type-A to Type-C cable.  The NZXT Capsule does not support connection over XLR.

Is the NZXT Capsule compatible with any boom arm, or only the NZXT Boom Arms?

The Capsule is compatible with any 1/4 inch threaded boom arms, as well as 3/8 inch threaded boom arms using the included 1/4 inch to 3/8 inch adapter.

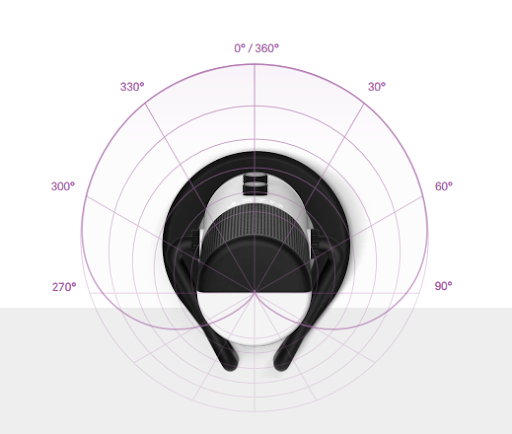

What is the pickup pattern for the NZXT Capsule?


The Capsule utilizes a Cardioid pickup pattern which places an emphasis on audio coming directly from the front of the mic.  This pickup pattern was chosen with gaming and streaming in mind to help not only put a focus on your voice but minimize background noise from your keyboard, mouse clicks, or any other noise that may be coming from behind the mic.

Does the NZXT Capsule support any other pickup patterns?

The Capsule only supports the Cardioid pickup pattern and does not support switching to other pickup patterns.

Can I use any USB cable with the NZXT Capsule?

The NZXT Capsule is compatible with most USB Type-C cables, including direct Type-C as well as Type-A to Type-C (included with the mic).   Be sure to check your cable's specifications, as a data connection will be required (some cables may only support charging).

How do I mute the NZXT Capsule?

To mute the Capsule, press the Gain dial.  While muted, the light on the Capsule will turn Red.


While the Capsule is upright, the Gain dial will be the top dial closest to the NZXT logo.

Can I disable the light on the NZXT Capsule?

The light on the Capsule cannot be disabled, as also works as an indicator as to which mode your Capsule is.

  • If your Mic is Open or Live, the light ring will be White.
  • If your Mic is Closed or Muted, the light ring will be Red.

Does the NZXT Capsule have an audio passthrough?

The Capsule includes an audio passthrough via the integrated 3.5 mm audio jack and integrated DAC.  To control the volume, use the lower dial on the mic.

What is the Sample Rate of the NZXT Capsule?

The Capsule has support for two sample rate modes:

  • 24-bit, 96000 Hz
  • 24-bit 48000 Hz

While using Comm or VoIP software such as Discord, it is recommended to use the 24-bit 48000 Hz mode as these programs may not support the higher bit-rate 96000 Hz mode.

Why does the dial for adjusting the gain or volume on the NZXT Capsule not have a stopping point?

This is an intentional design choice, as this gives a wider range of adjustment rather than what would be found with a finite dial.

What is the NZXT Capsule made of?

The Capsule consists of an aluminum body with PC ABS components.

What is the weight of the NZXT Capsule?

With the stand, the total weight of the NZXT Capsule is 883g.

Without the stand, the total weight is 314g.

What is the size of the NZXT Capsule?

With the stand, the Capsule is 115 x 131.3 x 252.8 mm.

Without the stand, the total size is 60 x 65.1 x 170.2 mm.

Do you have any questions not covered by this FAQ?  Please feel free to reach out to our Customer Support team or join the Official NZXT Community Discord to keep up to date on our latest products, upcoming sales, and join in on discussions on everything from PC hardware to gaming.
