H7 (2022 - 2023) Series Specs

Jules
Updated

H7 (2022 - 2023)
Compact ATX Mid-Tower
H7 | Flow | Flow RGB | Elite

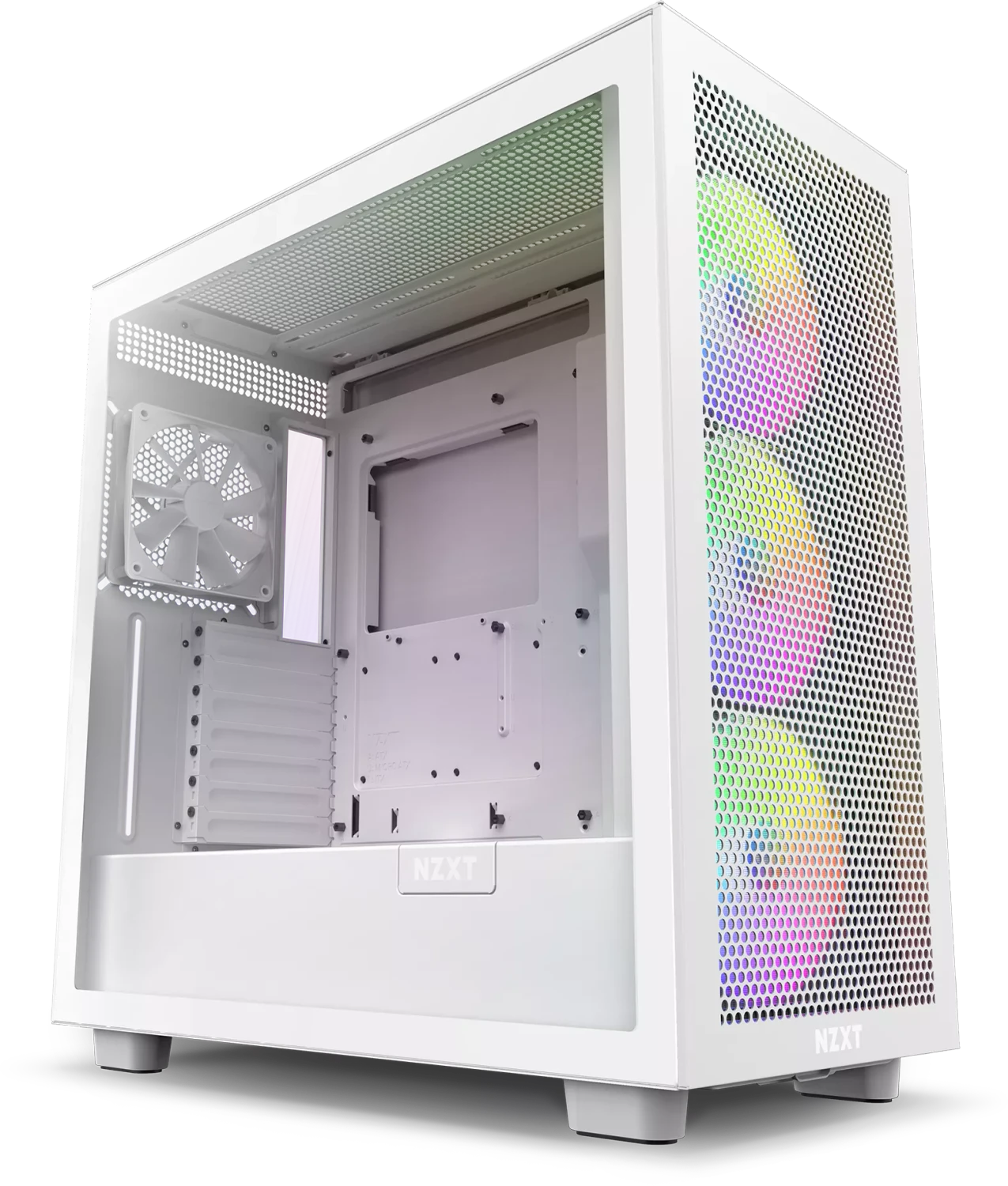

H7 RGB Flow (2023) shown
Dimensions
Height (with Feet) 505 mm (19.89 in)
Width 230 mm (9.06 in)
Depth 480 mm (18.90 in)
Weight
  • H7 (2022) - 10.26 kg
  • H7 Flow (2022) - 10.05 kg
  • H7 Flow RGB (2023) - 10.57 kg
  • H7 Elite (2022) - 11.36 kg
  • H7 Elite (2023) - 11.36 kg
General
Enclosure Type ATX Mid-Tower
Motherboard Compatibility
  • ATX
  • Micro-ATX
  • Mini-ITX
Supports Back Connect Motherboards
(BTF, Project Zero, etc.) 		No
Included Controller
  • NZXT RGB & Fan Controller (H7 Elite (2022) Only)
  • NZXT RGB Controller (H7 Version) (H7 Elite (2023) Only)
RGB Lighting

Elite and Flow RGB Only

  • 4-pin NZXT RGB w/ Controller (H7 Elite (2022) and H7 Elite (2023))
  • 4-pin NZXT RGB w/ 3-pin Addressable RGB Splitter
    (H7 Flow RGB (2023))
Materials
  • SGCC Steel
  • Ultra-clear Tempered Glass (White)
  • Dark Tinted Tempered Glass (Black)
Warranty 2 Years
Clearance
CPU Cooler Height 185 mm
GPU Length Up to 400 mm (w/o front fans or radiator)
Cable Management Clearance 18 - 22 mm
Front Fan & Radiator Clearance Up to 60 mm
Top Radiator Clearance Up to 30 mm
Front I/O Ports
USB 3.2 Type-A 2
USB 3.2 Gen 2x2 Type-C
(20 Gbps) 		1
3.5 mm Headset Jack 1
Expansion Slots
Standard 7
Vertical 0
Vertical GPU Mounting Kit Compatible Yes
Drive Bays
2.5" 4 + 2
3.5" 2
Fan Support
Front
  • Up to 3 x 120 mm
  • Up to 3 x 140 mm
Top
  • Up to 3 x 120 mm
  • Up to 2 x 140 mm
Rear
  • 1 x 120 mm
  • 1 x 140 mm
Included Filters All Air Intakes
Radiator Support
Front
  • Up to 360 mm (120 mm base)
  • Up to 280 mm (140 mm base)
Top
  • Up to 360 mm (120 mm base)
  • Up to 280 mm (140 mm base)
Rear
  • 120 mm
  • 140 mm
Product Info
Model Number

H7 (2022)

  • CM-H71BB-01 (Black)
  • CM-H71BW-01 (White)
  • CM-H71BG-01 (White/Black)

H7 Flow (2022)

  • CM-H71FB-01 (Black)
  • CM-H71FW-01 (White)
  • CM-H71FG-01 (White/Black)

H7 Flow RGB (2023)

  • CM-H71FB-R1 (Black)
  • CM-H71FW-R1 (White)

H7 Elite (2022)

  • CM-H71EB-01 (Black)
  • CM-H71EW-01 (White)

H7 Elite (2023)

  • CM-H71EB-02 (Black)
  • CM-H71EW-02 (White)
UPC

H7 (2022)

  • 815671019417 (Black)
  • 815671019424 (White)
  • 815671019479 (White/Black)

H7 Flow (2022)

  • 815671019431 (Black)
  • 815671019448 (White)
  • 815671019486 (White/Black)

H7 Flow RGB (2023)

  • 815671019431 (Black)
  • 810074843621 (White)

H7 Elite (2022)

  • 815671019455 (Black)
  • 815671019462 (White)

H7 Elite (2023)

  • 810074843591 (Black)
  • 810074843607 (White)
EAN

H7 (2022)

  • 5060301696963 (Black)
  • 5060301696970 (White)
  • 5060301697038 (White/Black)

H7 Flow (2022)

  • 5060301696987 (Black)
  • 5060301697007 (White)
  • 5060301697045 (White/Black)

H7 Flow RGB (2023)

  • 5056547203539 (Black)
  • 5056547203546 (White)

H7 Elite (2022)

  • 5060301697014 (Black)
  • 5060301697021 (White)

H7 Elite (2023)

  • 5056547203515 (Black)
  • 5056547203522 (White)

Included Fans

H7 & H7 Flow

  H7 (2022) H7 Flow (2022) H7 Flow RGB (2023)
Front 1 x F120Q Airflow Fan
(Case Version)		 1 x F120Q Airflow Fan
(Case Version)		 3 x F140 RGB Core Fan
(Case Version)
Top None None None
Rear 1 x F120Q Airflow Fan
(Case Version)		 1 x F120Q Airflow Fan
(Case Version)		 1 x F120Q Airflow Fan
(Case Version)

H7 Elite

  H7 Elite (2022) H7 Elite (2023)
Front 3 x F140 RGB Fan 3 x F140 RGB Core Fan
(Case Version)
Top None None
Rear 1 x F120Q Airflow Fan
(Case Version)		 1 x F120Q Airflow Fan
(Case Version)

Fan & Controller Specs

NZXT RGB & Fan Controller (H7 Elite (2022))
RGB Channels 6
RGB Connection Type 4-pin NZXT RGB (40 LEDs per channel, 120 LEDs total)
Fan Channels 3
Fan Power 12V DC, 3A (12W per channel, 36W total)
Power Connection SATA Power
Data Connection USB 2.0 Internal
NZXT RGB Controller (H7 Version) (H7 Elite (2023))
RGB Channels 3
RGB Connection Type 4-pin NZXT RGB (40 LEDs per channel, 120 LEDs total)
Power Connection SATA Power
Data Connection USB 2.0 Internal
F120Q Airflow Fan (Case Version)
Speed 1,200 ± 120RPM
Airflow 62.18 CFM
Static Pressure 2.06 mm-H₂O
Noise 25.1 dBA
Fan Connector & Type 3-pin DC
F140 RGB Fan
Speed 500 - 1800 RPM
Airflow 24.85 - 89.48 CFM
Static Pressure 0.94 - 3.39 mm-H₂O
Noise 20 - 32.5 dBA
Fan Connector & Type 4-pin PWM
RGB Connector 4-pin NZXT RGB
F140 RGB Core Fan (Case Version)
Speed 1,200 ± 120RPM
Airflow 61.74 CFM
Static Pressure 2.06 mm-H₂O
Noise 29.05 dBA
Fan Connector & Type 3-pin DC
RGB Connector 4-pin NZXT RGB w/ 3-pin 5V ARGB Adapter Splitter
