This article cover some common issues that can occur with the Front I/O ports on your PC case.

USB Over Current Status Detected

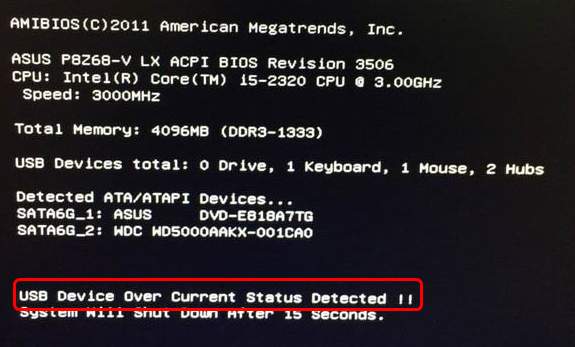

While booting your PC you may be greeted with the USB Device Over Current Status Detected or similiar message followed by a shutdown.  This error can indicate an issue either with a connected USB device on your PC or a short within the USB port.  While not limited o the Front I/O, it is more common with ports that are actively plugged or unplugged.

Steps to Verify:

• Unplug the PC from AC power
• Press and hold the Power button for 30 seconds to drain residual power
• Reset the CMOS
• Disconnect all USB-based devices from your PC
• Disconnect any USB-based internal devices from USB 2.0 headers inside of the case (i.e. Kraken AIO cooler, RGB Controller, etc.)

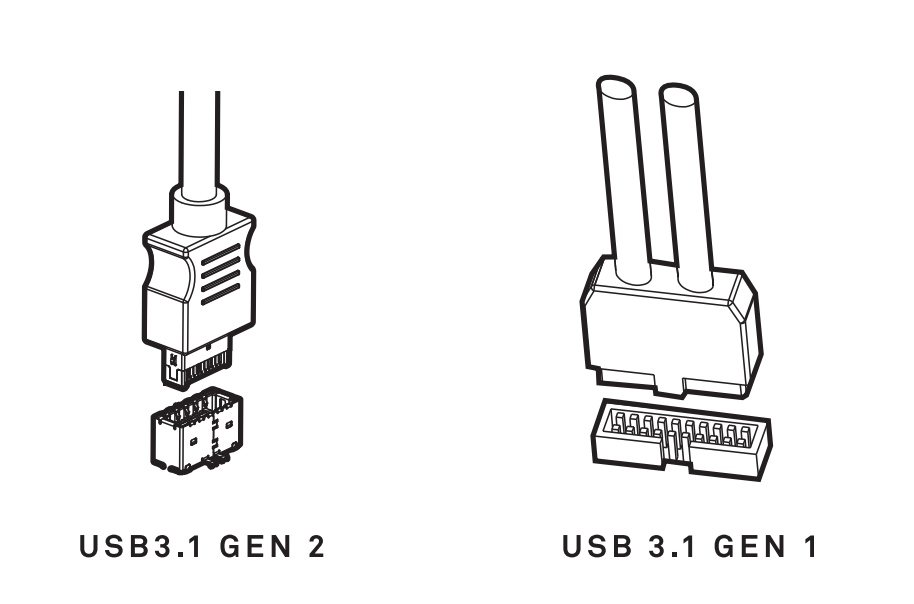

• Disconnect the USB 3.1 Gen 1 and USB 3.2 Gen 2x2 front-panel connectors from the case to the motherboard as shown below:


With these cables disconnected, reconnect the AC power and try starting the PC again.

• If the issue is still present - The issue is likely with a physical port on the motherboard, requiring replacement of the motherboard to resolve.
• If the issue is no longer present - Shutdown the PC and begin reconnecting devices.  Start with basic input (Keyboard and Mouse), followed by any USB 2.0 Internal Devices, other USB devices connected to the rear of the PC, and finally the two front-panel connectors to isolate the issue.

If the issue returns due to reconnecting the front-panel USB connectors, the Front I/O module may need to be replaced.

USB Connectivity Problems

If a USB device connected to the Front I/O is exhibiting issues (slow connection speed, sudden dropouts, no recognition), this can indicate an issue with the Front I/O module.

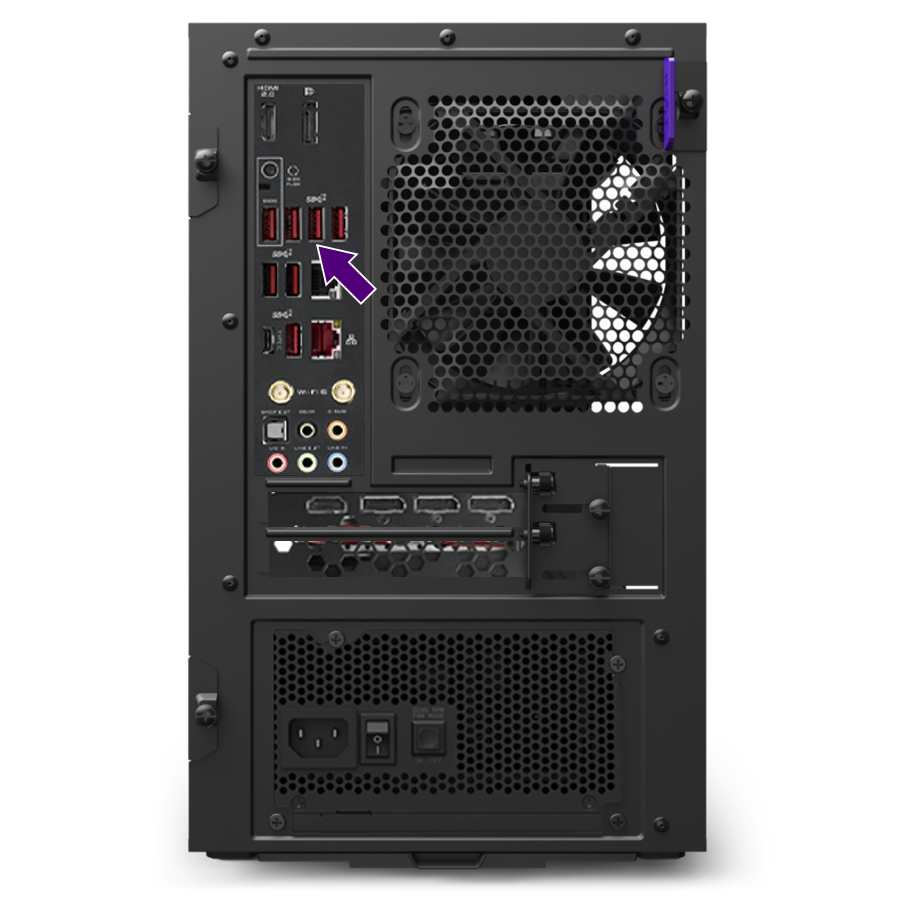

The first recommended step is to connect the device in question directly to the motherboard's rear I/O to check if the issue persists.  A persistent issue indicates that the connected device may be malfunctioning or there is an issue with the USB Controller, however a resolved issue may indicate that the Front I/O module requires replacement.

Audio Issues

All NZXT cases released since the H210, H510, and H710 feature a 4-pole CTIA based Headset jack which combines both the Headphone Output and Microphone Input into a single connector.  If you are experiencing issues where only the Output or Input is working, this may indicate that your headset is not compatible.  Some headsets utilize the less common OMTP standard which swaps the Ground and Microphone poles which can result in the headset not functioning properly.  For more information, please refer to your headset user's manual.

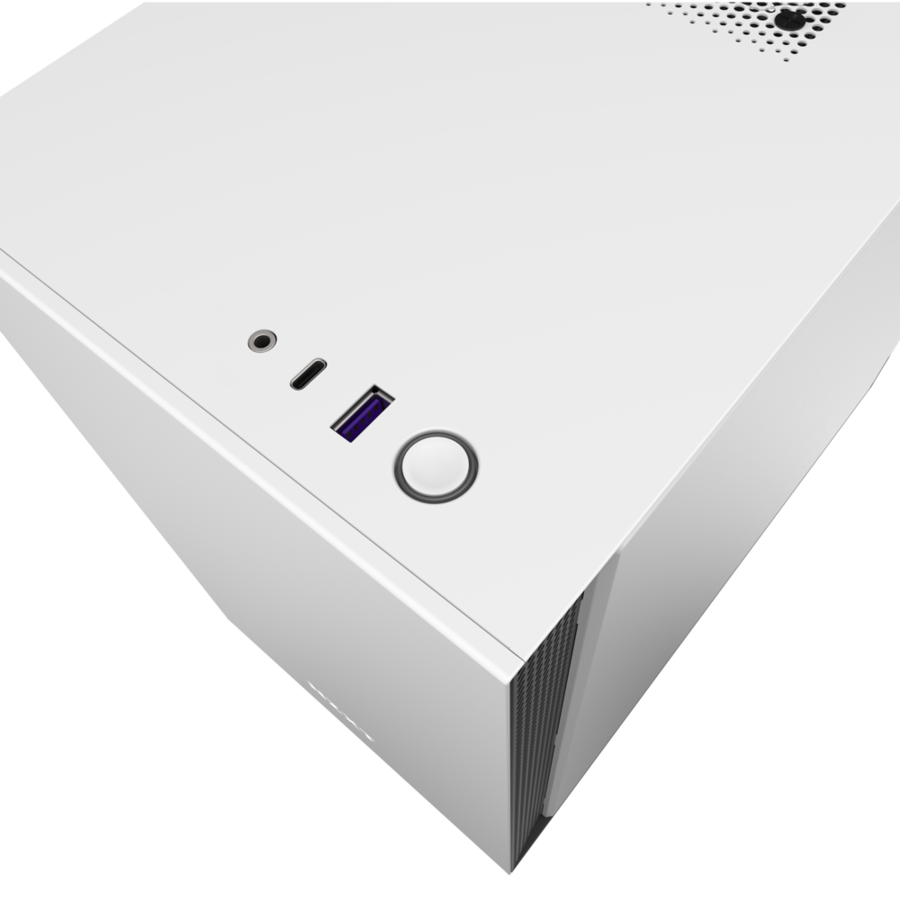

Power Button Issues

If the power button is unable to start the PC or shows inconsistent starts, this can indicate an issue with the button on the Front I/O.  This can be tested by disconnecting the F_PANEL connector from your motherboard and bridging the POWER_SW pins with a conductive object (i.e. the tip of a metal screwdriver) to simulate a button press.

• If you see consistent power-on behavior while bridging the pins, the Front I/O may need to be repalced.
• If you do not see consistent power-on behavior, this can indicate an issue with the Motherboard or Power Supply.
