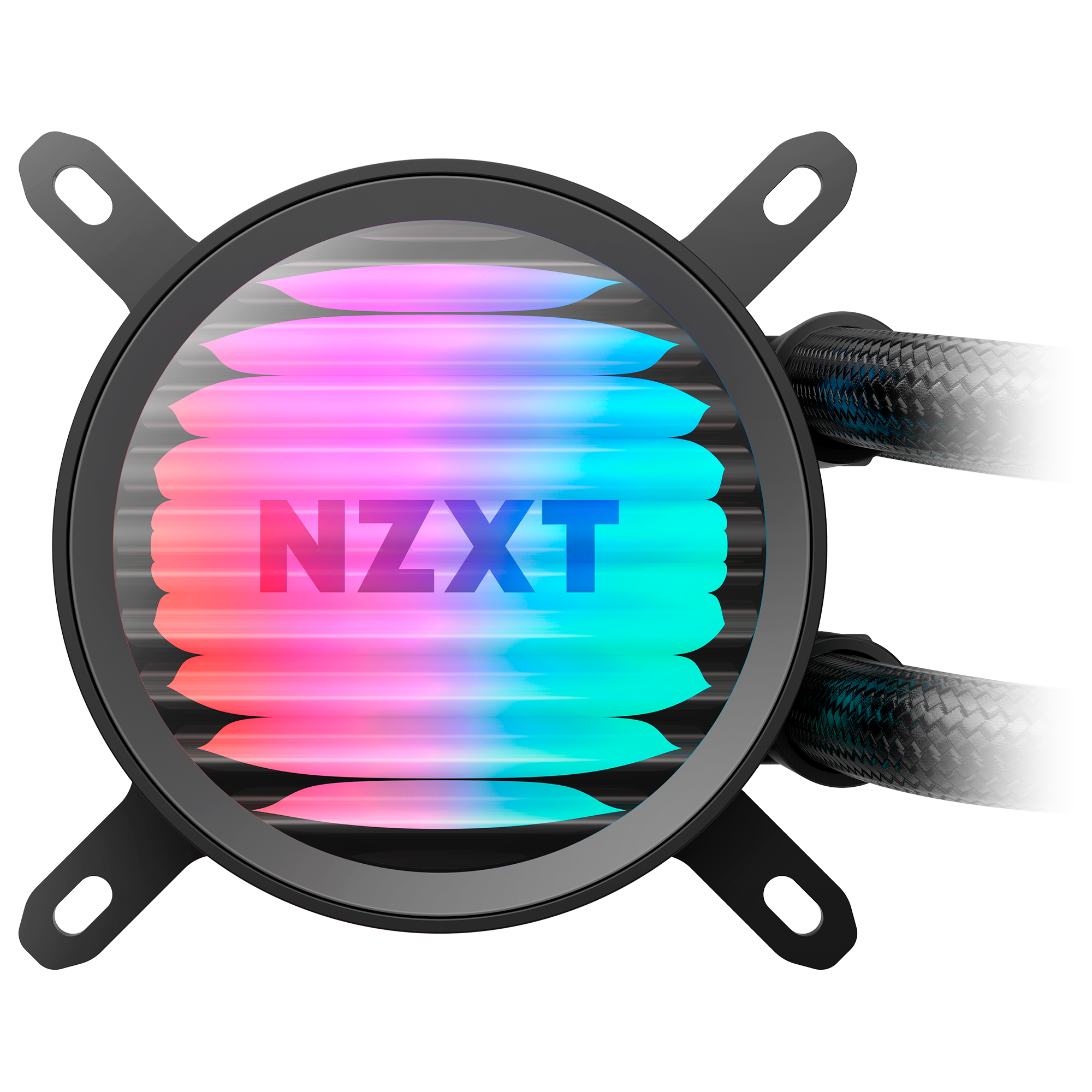

Kraken Core RGB (2025) |
For installation with AMD sockets, check out the guide here.
Installing the Kraken Core is an easy, fairly straight forward process with no need for additional breakout cables, USB connections, or dedicated controllers. This guide will cover installing the Kraken Core with the following Intel sockets:
- Intel 1851 & 1700
- Intel 1200 & 115x
The Kraken Core is not officially compatible with other Intel sockets (i.e. Socket 2066, 2011, etc.)
What hardware do I need?

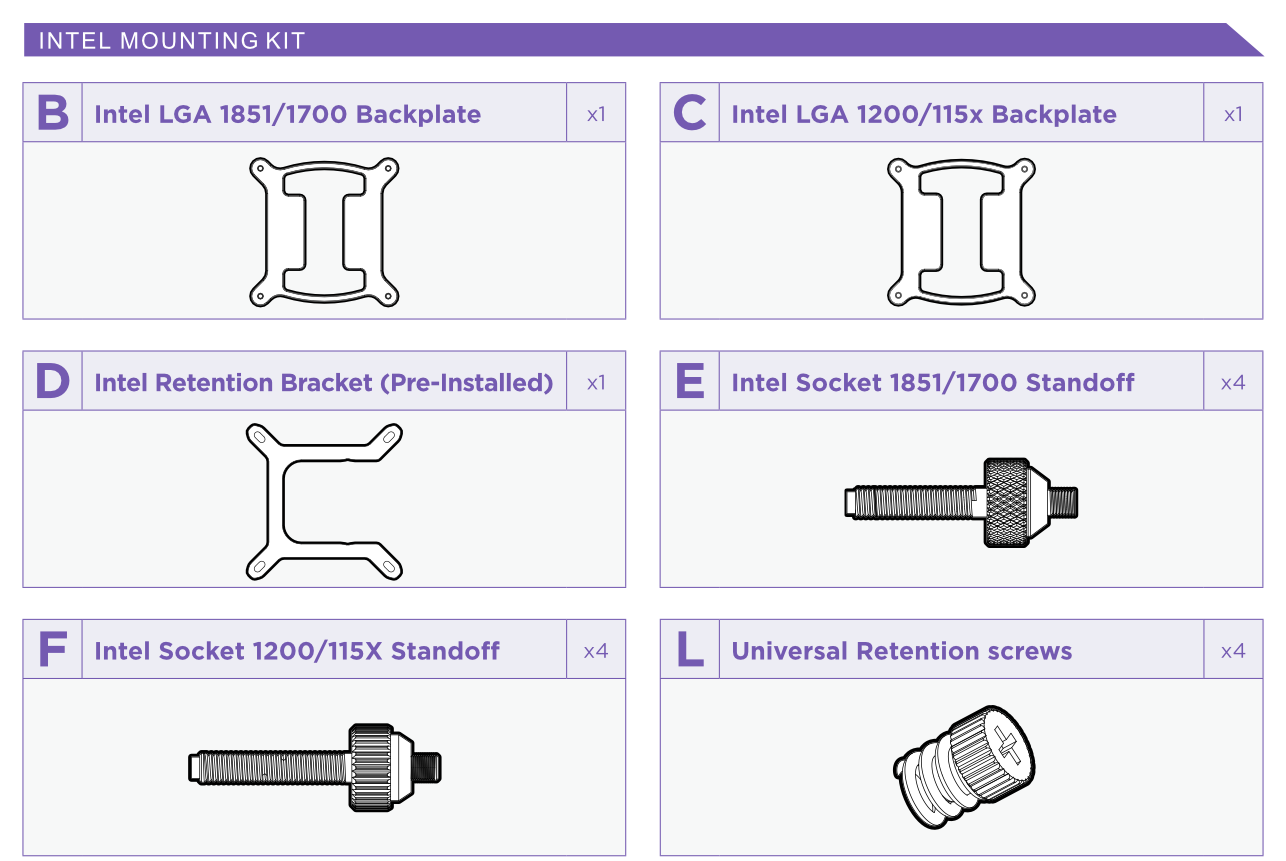

For this step of the guide you will need the following hardware from the accessory bag:
| Intel Backplate | Intel Standoffs |
|
|
| |
Installing the Backplate
This step is best done before installing the motherboard in the case, however many cases will include a generous cutout for easy access to the back of the motherboard.

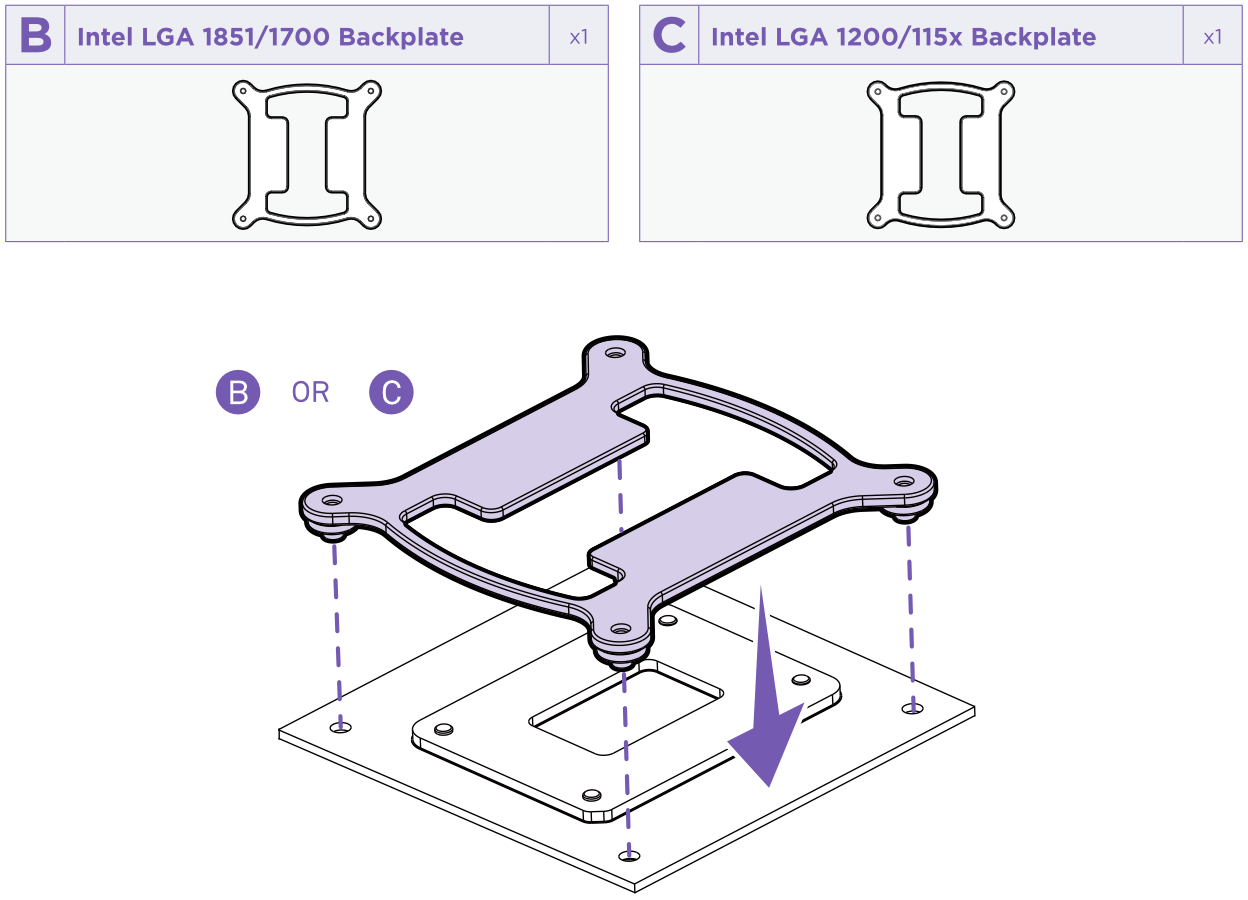

Align the backplate with the through-holes on the back of the motherboard near the socket.
|

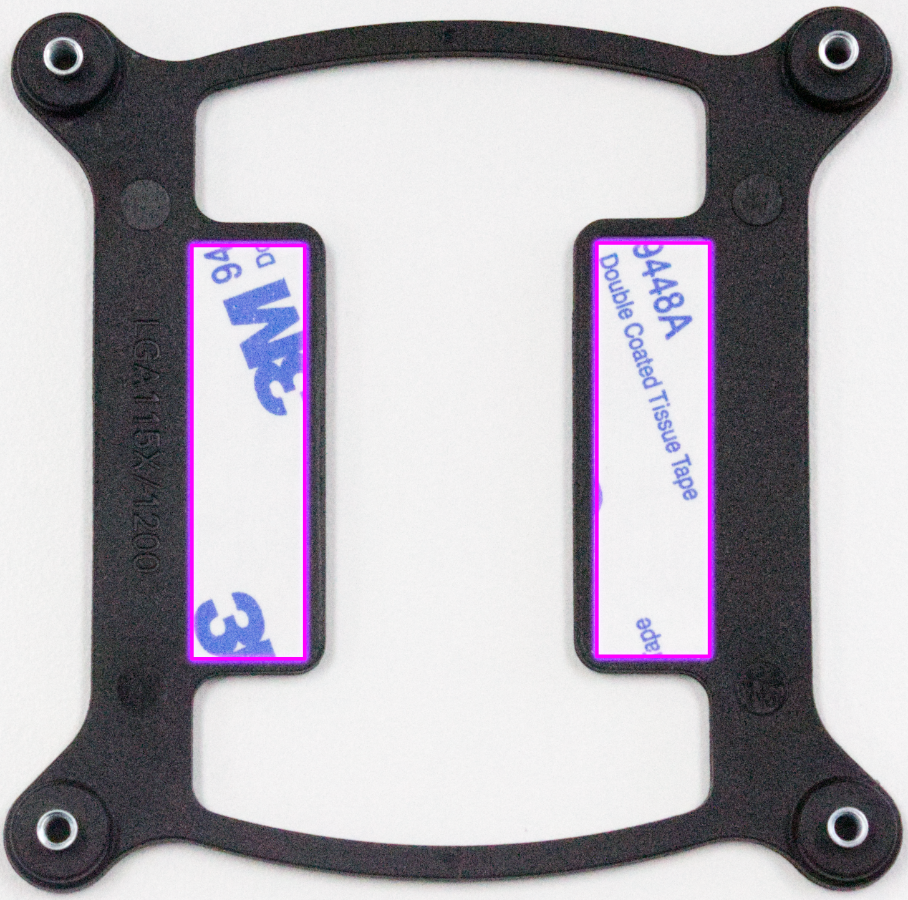

To help with the install process, you will find two pre-applied 3M tape strips on the backplate itself. Carefully peel the protective backing from the 3M tape, then adhere the plate to the back of the motherboard in alignment with the through-holes. This tape is one-time use and will form a strong bond with the motherboard, so it is recommended to check the fitment and that you are using the right plate before peeling the backing. |
Installing the Standoffs

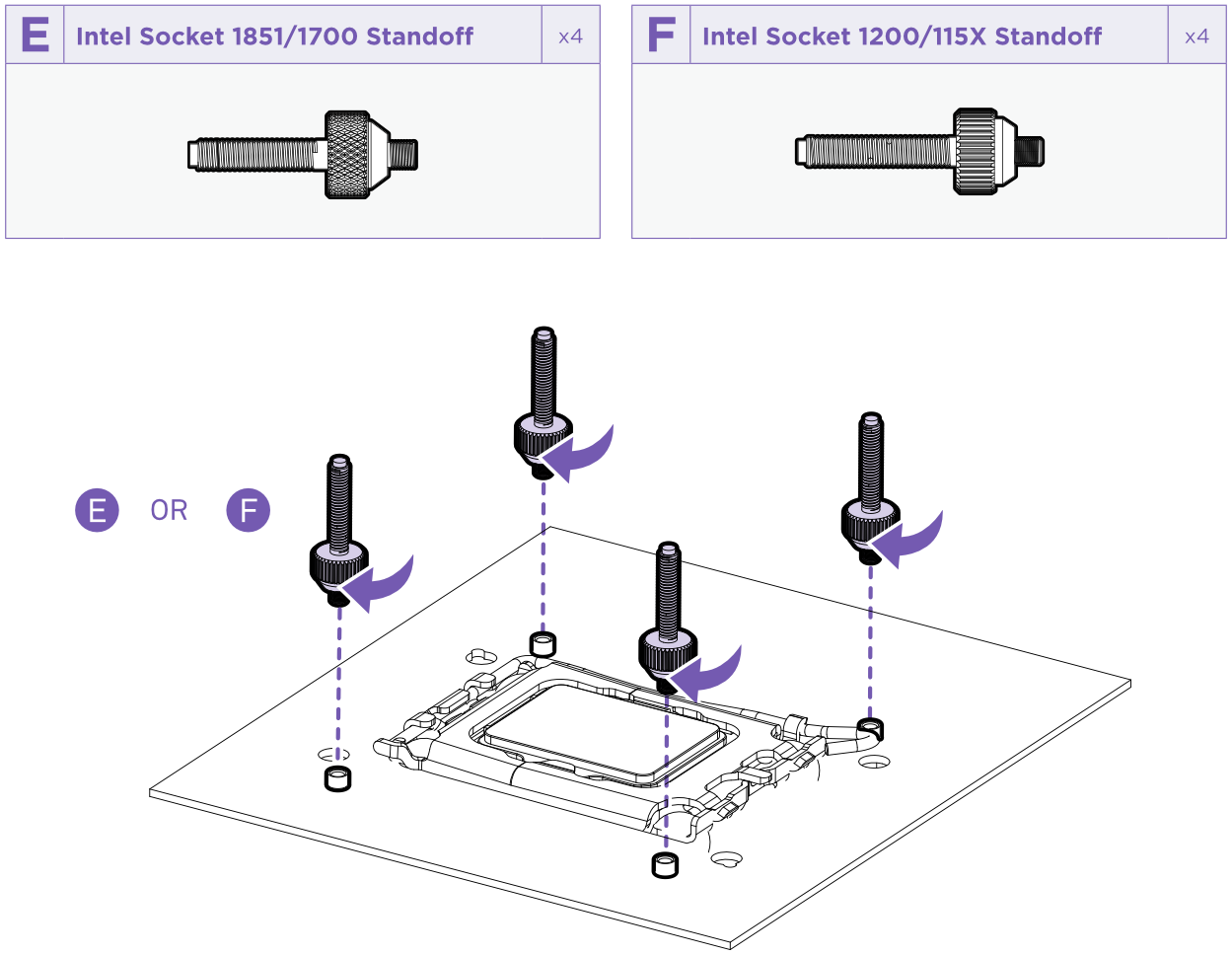

With the holes aligned, secure the backplate to the motherboard by screwing the short side of the E/F Intel Socket Standoff to the exposed posts on the socket side of the motherboard.
If your motherboard is not installed in the case at this stage, finish installing the motherboard before continuing.
Securing the Cap

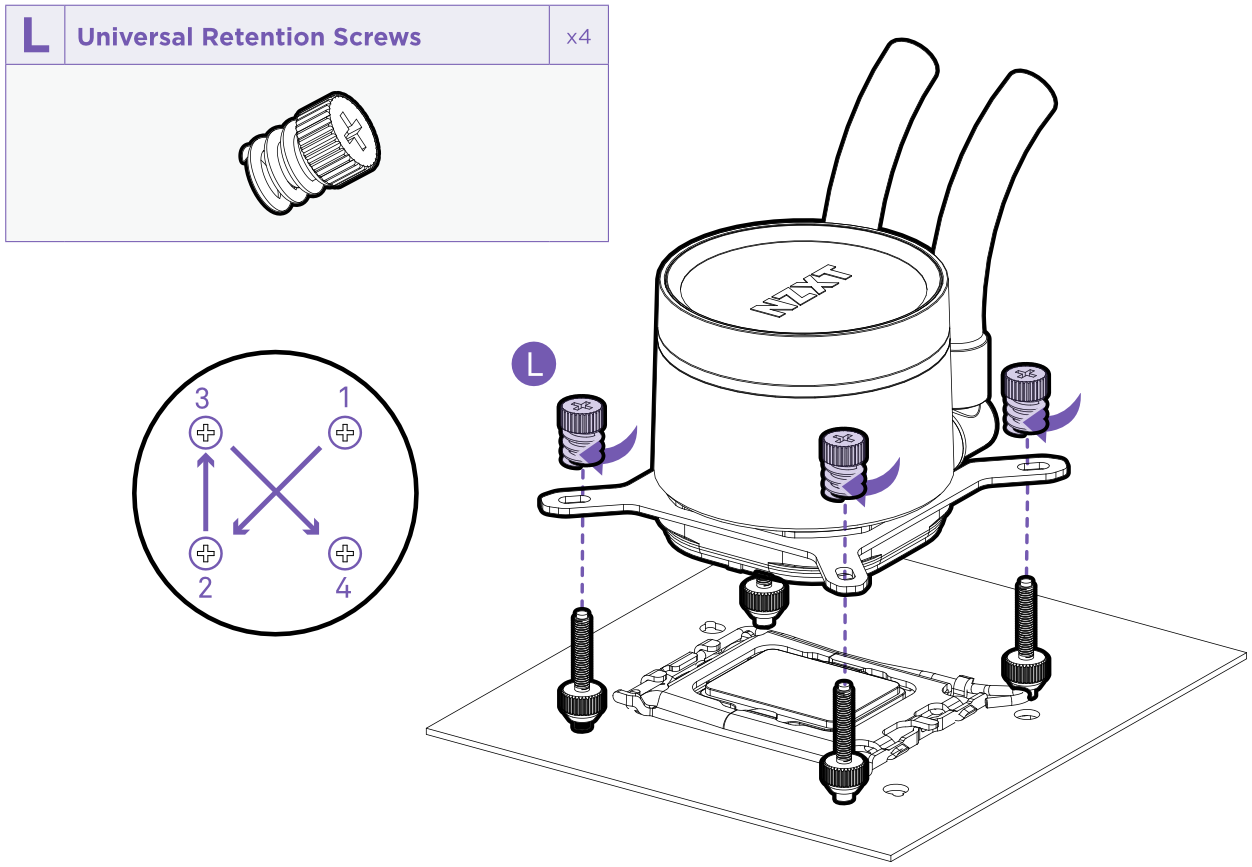

Remove the plastic cover from the cap and align it with the four standoffs, keeping the tubes to the right of the CPU socket. Secure the cap to the motherboard using the four (4) L Universal Retention Screws.
Start by loosely securing all four screws, then tighten the screws in an X-pattern as shown in the image above.
Powering the Pump

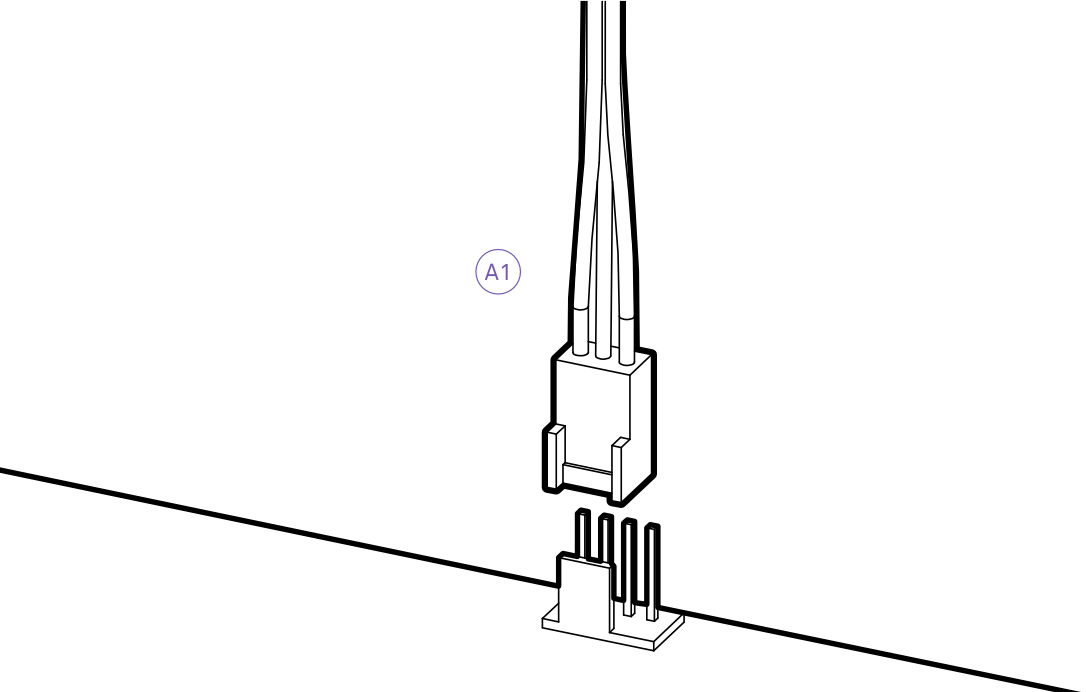

To power the pump, connect the 3-pin Pump DC Connector from the Cap to on eof the following headers on your motherboard:
- AIO_PUMP
- Depending on your motherboard, this may also be called CPU_OPT or CPU_FAN2. For more information refer to your motherboard user's manual.
- CPU_FAN
| Should I use AIO_PUMP or CPU_FAN? |
| The header you should use will depend on what options are available on your motherboard. If your motherboard does not have an AIO_PUMP header or an equivalent connector as mentioned above, it is recommended to use the CPU_FAN header. |
Connecting the 5V ARGB
The Kraken Core's cap lighting is powered exclusively by 5V Addressable RGB (ARGB), which is found on many motherboards under various names such as ADD_HEADER, JRAINBOW, D_LED, ADD_GEN2, etc. For more information refer to your motherboard user's manual.

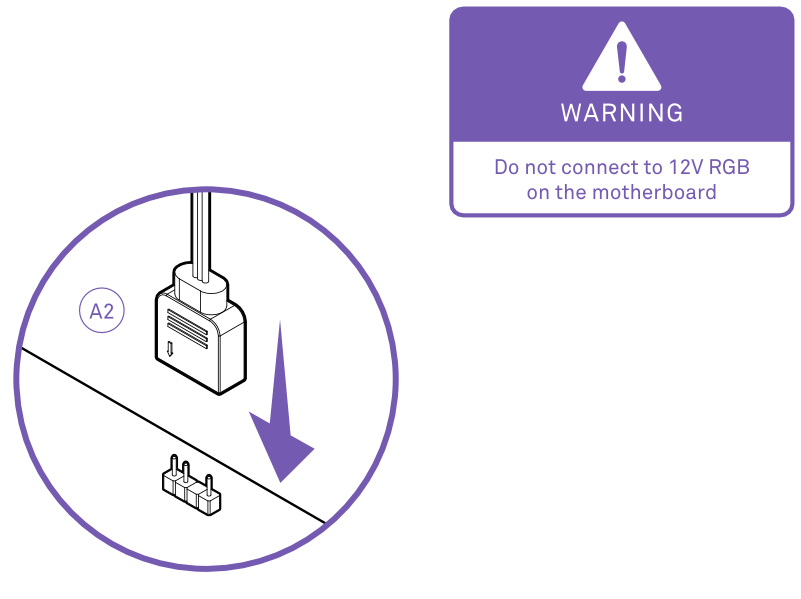

Connect the 5V Female Connector from the Cap to an available 5V ARGB header on your motherboard. If your motherboard does not feature 5V ARGB headers, you may need to use a compatible third-party adapter.
| Can I connect the 5V ARGB to a 12V RGB header? |
|
Do not attempt to connect the 5V ARGB header on the Kraken Core or its included fan to 12V RGB or UART connectors! This can cause permanent damage to your PC and/or the Kraken. Damage caused by improper installation of the Kraken is not covered under warranty. |
|
