How to Remove Panels on the H710 Series

Removing panels on the H710 series of cases is designed to be easy and should only take a few minutes to do.

Removing the Tempered Glass Panel

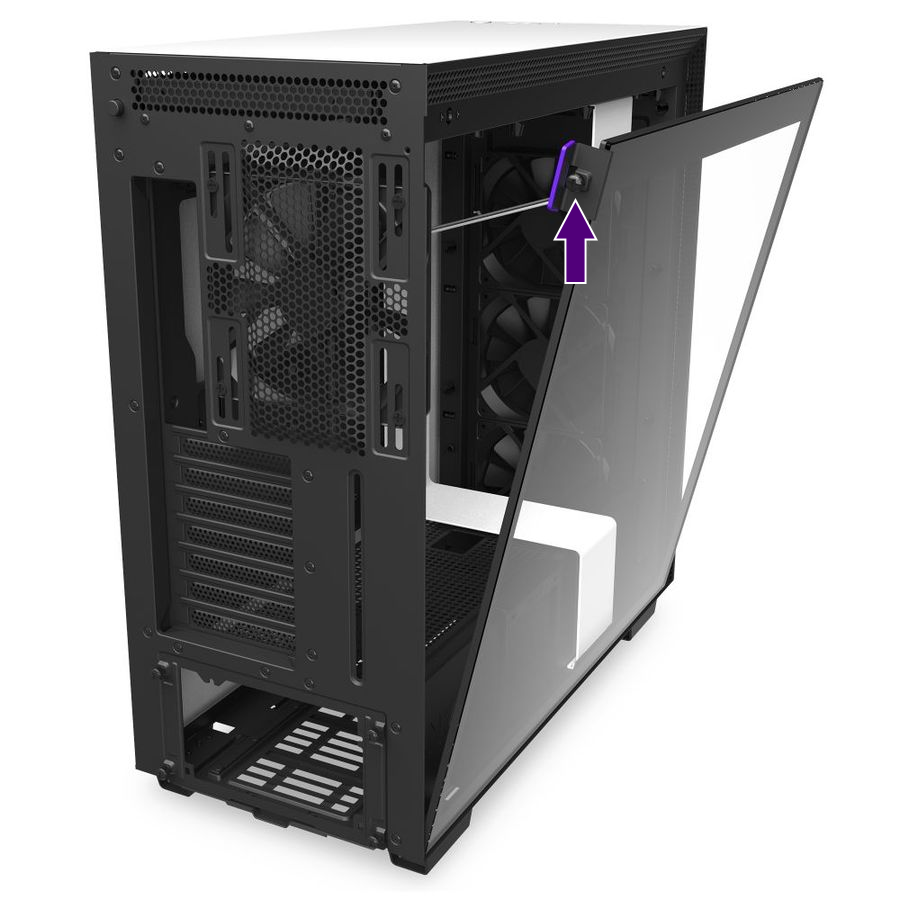

To remove the tempered glass panel, loosen the locking screw located in the top-left corner at the rear of the panel.  This is a captive screw and will stay with the panel when properly loosened.  Using the folded metal tab, pull the glass panel away from the top of the case to unlock the panel.

To re-attach the panel, align the glass panel with the bottom of the case and press the top of the panel into the ball sockets at the top of the case.  Once attached, secure the panel using the locking screw in the top-left corner.

Removing the Front and Top Panels

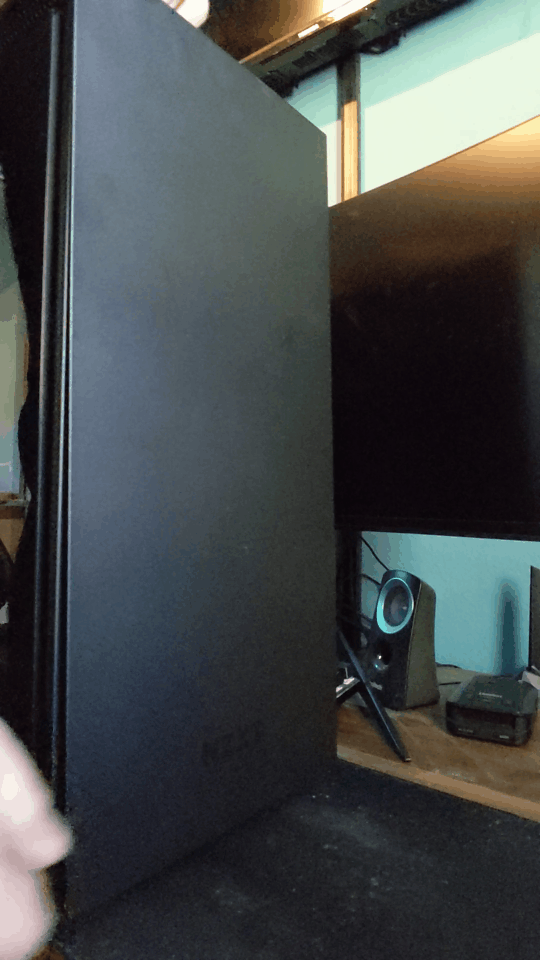

The Front and Top Panels must be removed in order.  To remove the front, grip the underside of the front panel and pull it away from the case to release the plastic clips.  Once removed, use the cutout at the front of the case to remove the top panel by pulling the panel away from the top of the case.

To re-attach the panels, align the plastic clips with the holes on the case and press the panel into the case.  When re-attaching the Front and Top panels, be sure to attach the Top before the Front.

Removing the Metal Side Panel

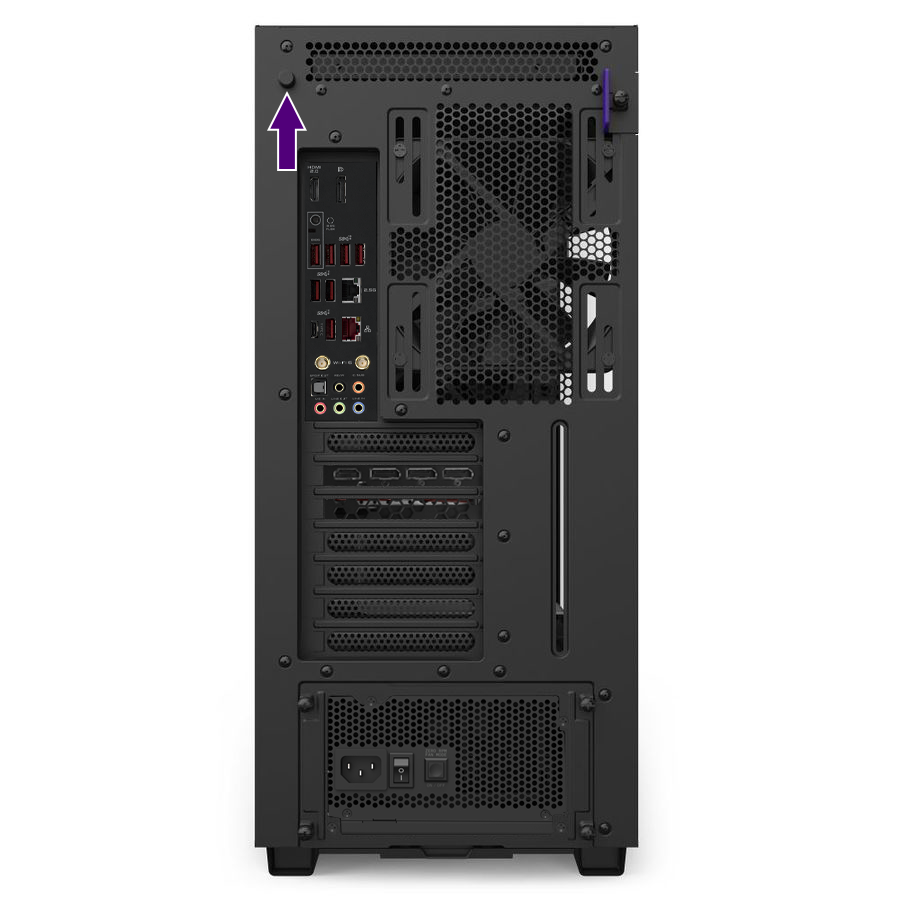

The metal side panel is held on using a mechanical latch.  To remove the panel, press the release button in the top-left of the rear of the case as shown above.

To re-attach the panel, align the bottom of the panel with the bottom of the case and then press the tabs into the locking latch.
