S5 RGB (2026) Specs

Jules
Updated

S5 RGB (2026)
ATX Mid-tower Case

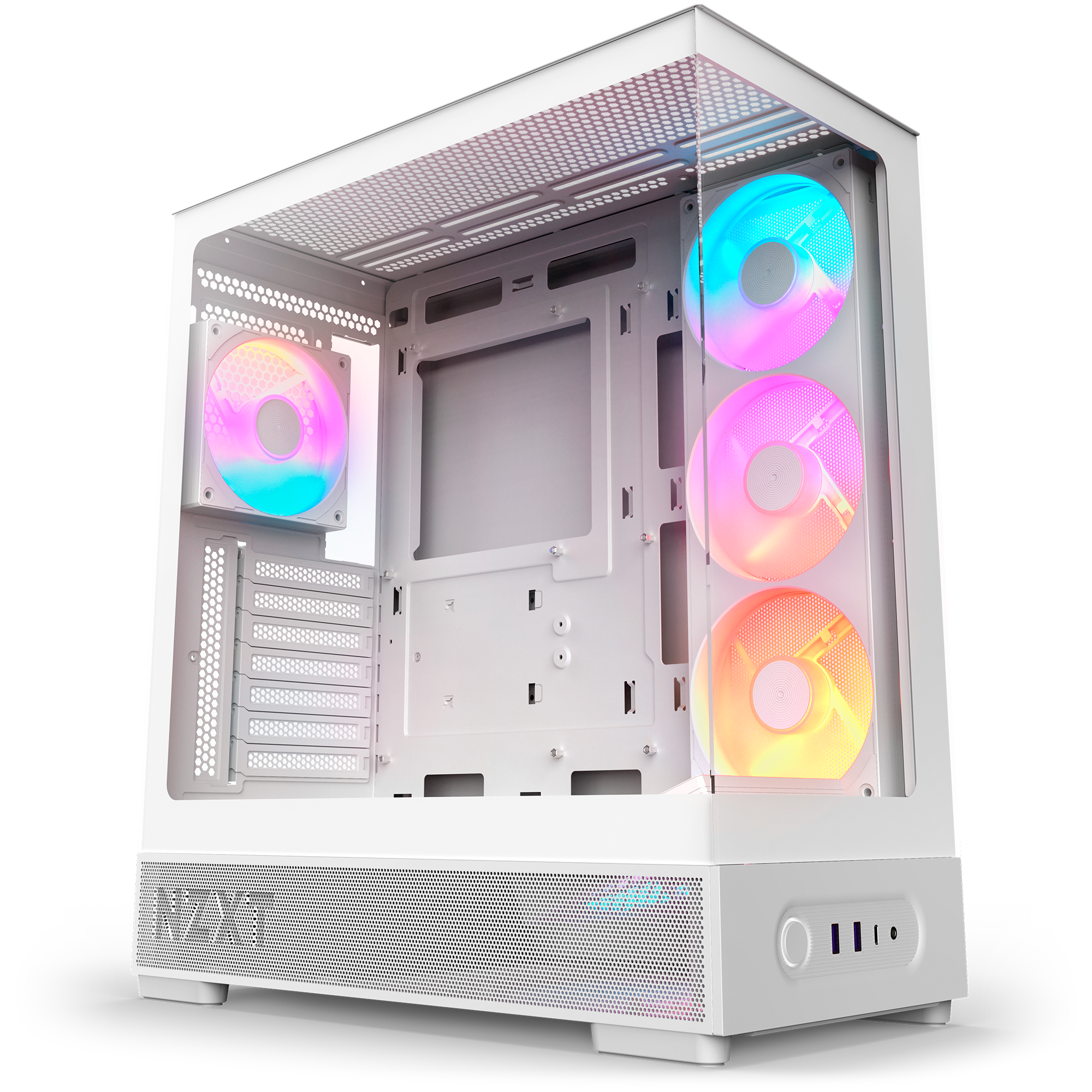

S5 RGB Deluxe(2026)_hero_with fan_white.png

S5 RGB Deluxe (2026) shown
Features & Compatibility
General
Enclosure Type Dual-chamber ATX case
Motherboard Compatibility ATX, Micro-ATX, Mini-ITX
Supports Back Connect Motherboards? No
Included Controller None
RGB Lighting Yes
RGB Connection Type 3-pin Addressable RGB (ARGB)
Materials Steel, plastic, tempered glass
Warranty 2 Years
Clearance
CPU Cooler Height Up to 162 mm
GPU Length Up to 415 mm
PSU Length Up to 200 mm
Fan Support
Total Fan Mounts 10
Top

3 x 120 mm or

2 x 140 mm
Right Side 3 x 120 mm
Bottom 2 + 1 (angled) x 120 mm
Rear 1 x 120 mm
Radiator Support
Top Up to 360 mm (120 mm base only)
Rear 120 mm
Expansion Slots
Standard 7
Supports Vertical GPU Mounting Kit No
Drive Bays
2.5" 1
3.5" 1
Tech Specs
Dimensions
Height 482 mm (19.0 in)
Width 210 mm (8.3 in)
Depth 423 mm (16.7 in)
Weight
  • S5 RGB - 6.14 kg (13.54 lbs)
  • S5 RGB Deluxe - 6.44 kg (14.20 lbs)
Volume 42.8 L
Panels
Front / Left Side Tempered glass
Right Side Steel with mesh
Top Removable PVC mesh filter
Bottom Removable PVC mesh filter
Tool-less Panel Access Yes
Front I/O
USB 3.2 Gen 1 Type-A (5 Gbps)* 2
USB 3.2 Gen 2x2 Type-C (20 Gbps)* 1
3.5 mm Headset Jack 1
Cable Management
Includes Cable Ties Yes (Accessory Box)
Included Fans
Case Model Included Fans
S5 RGB
  • 1 x 360 mm RGB Reverse Fan (single-frame)
S5 RGB Deluxe
  • 1 x 360 mm RGB Reverse Fan (single-frame)
    • Pre-installed, Right Side
  • 1 x 120 mm RGB Fan
    • Pre-installed, Rear
  • 1 x 120 mm RGB Reverse Fan
    • Pre-installed, bottom angled
Product Info
S5 RGB
Model Number
  • CC-S51FB-01 (Black)
  • CC-S51FW-01 (White)
UPC
  • 815671019134 (Black)
  • 815671019141 (White)
EAN
  • 5056547208312 (Black)
  • 5056547208329 (White)
Inside the Box
  • S5 RGB Case
  • Pre-installed 360 mm RGB Reverse Fan
  • Installation Accessories
  • User Guide
S5 RGB Deluxe
Model Number
  • CC-S51FB-D1 (Black)
  • CC-S51FW-D1 (White)
UPC
  • 815671019196 (Black)
  • 815671019202 (White)
EAN
  • 5056547208336 (Black)
  • 5056547208343 (White)
Inside the Box
  • S5 RGB Deluxe Case
  • Pre-installed 360 mm RGB Reverse Fan
  • Pre-installed 120 mm RGB Reverse Fan
  • Pre-installed 120 mm RGB Fan
  • Installation Accessories
  • User Guide
