F120U & F140U

Dimensions
	F120 RGB	F140 RGB
Length	120 mm	140 mm
Width	120 mm	140 mm
Thickness	25 mm
General
Fan Type	Ultra RGB Fan
RGB Lighting	Multi-Zone RGB (2-zones)
# of LEDs	32
Included in the Box	Four (4) Mounting Screws Four (4) Radiator Screws
Warranty	5 Years
Fan Specs
Maximum Speed	2,250 ± 220 RPM	2,400 ± 240 RPM
Airflow	60.0 CFM	92.2 CFM
Static Pressure	2.4 mm-H₂O	5.1 mm-H₂O
Noise	32.2 dBA	36.9 dBA
Maximum Speed (27 dBA)	1,800 RPM	1,700 RPM
Airflow (27 dBA)	50.0 CFM	61.73 CFM
Static Pressure (27 dBA)	1.50 mm-H₂O	2.86 mm-H₂O
Power Consumption (Fan)	12V DC, 0.25A (3.0W)	12V DC, 0.27A (3.24W)
Power Consumption (RGB)	5V DC, 0.50A (2.5W)	5V DC, 0.30A (2.5W)
Bearing Type	Fluid Dynamic Bearing (FDB)
# of Blades	11	7
Fan Connector	4-pin PWM
RGB Connector	4-pin NZXT RGB 3-pin 5V ARGB
Material	PBT PC Rubber PCB
Life	60,000 hours
Product Info
Model Number	RF-E12US-BA (Black) RF-E12US-WA (White)	RF-E14US-BA (Black) RF-E14US-WA (White)
UPC	810074848220 (Black) 810074848237 (White)	810074848244 (Black) 810074848251 (White)
EAN	5056547208084 (Black) 5056547208091 (White)	5056547208107 (Black) 5056547208114 (White)

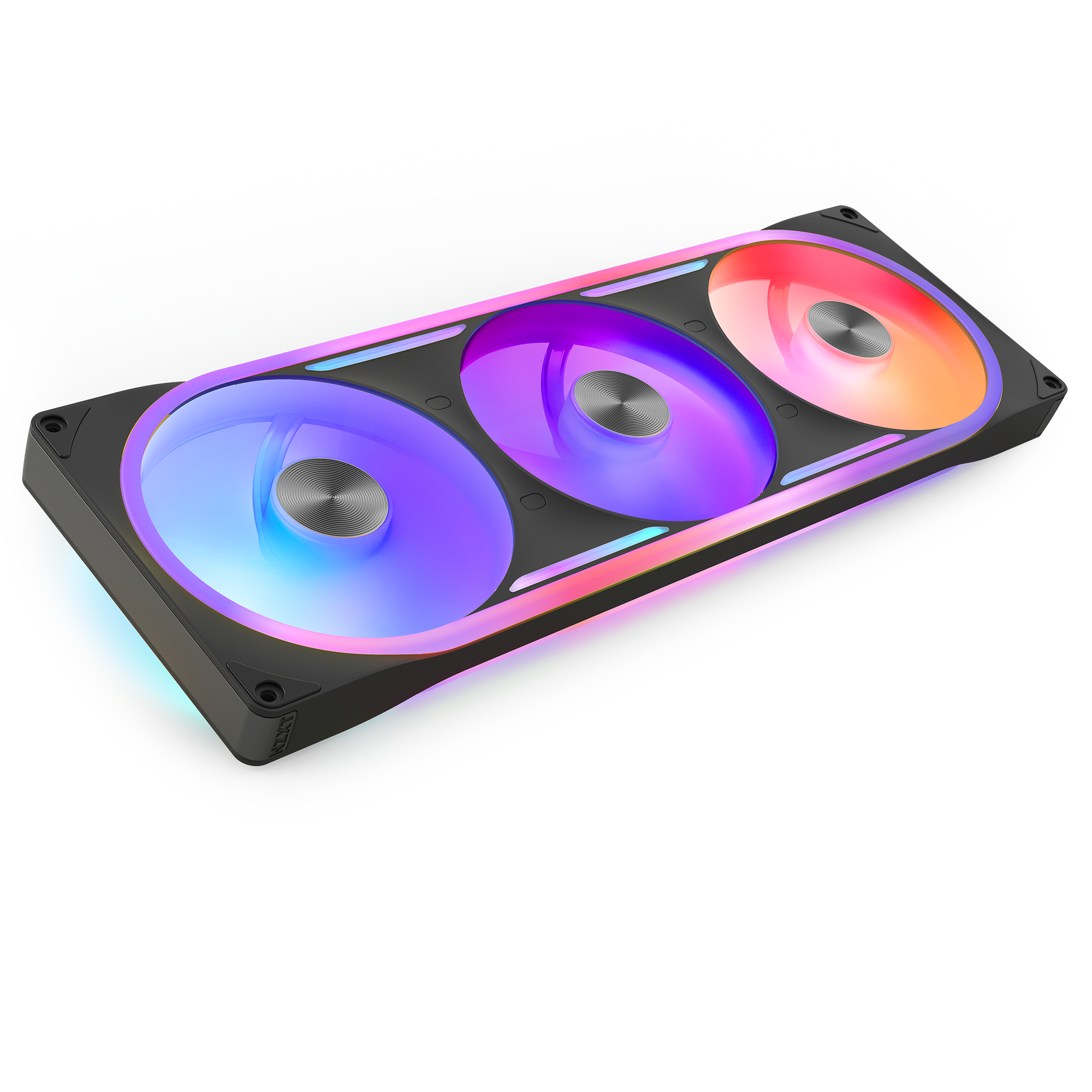

F360U & F420U

Dimensions
	F360U	F420U
Length	360 mm	420 mm
Width	120 mm	140 mm
Thickness	25 mm
General
Fan Type	Single-frame Ultra RGB Fan
RGB Lighting	Multi-Zone RGB (2-zones)
# of LEDs	96 LEDs
Included in the Box	Four (4) Mounting Screws Four (4) Radiator Screws 8-pin NZXT PWM+RGB Adapter Cable Adapts to 4-pin PWM (Fan), 4-pin NZXT RGB, and 3-pin 5V ARGB
Warranty	5 Years
Fan Specs
Maximum Speed	2,250 ± 220 RPM per fan	2,400 ± 240 RPM per fan
Airflow	60.0 CFM per fan per fan	92.2 CFM per fan
Static Pressure	2.4 mm-H₂O per fan	5.1 mm-H₂O per fan
Noise	32.2 dBA per fan	36.9 dBA per fan
Maximum Speed (27 dBA)	1,800 RPM per fan	1,700 RPM per fan
Airflow (27 dBA)	50.0 CFM per fan	61.73 CFM per fan
Static Pressure (27 dBA)	1.50 mm-H₂O per fan	2.86 mm-H₂O per fan
Power Consumption (Fan)	12V DC, 0.9A (10.8W)	12V DC, 1.03A (12.36W)
Power Consumption (RGB)	5V DC, 1.45A (7.25W)	5V DC, 1.4A (7W)
Bearing Type	Fluid Dynamic Bearing (FDB)
# of Blades	11 per fan	7 per fan
Fan Connector	8-pin NZXT PWM+RGB
RGB Connector	8-pin NZXT PWM+RGB
Material	PBT PC Rubber PCB
Life	60,000 hours
Product Info
Model Number	RF-E36US-BA (Black) RF-E36US-WA (White)	RF-E42US-BA (Black) RF-E36US-WA (White)
UPC	810074848305 (Black) 810074848312 (White)	810074848329 (Black) 810074848336 (White)
EAN	5056547208169 (Black) 5056547208176 (White)	5056547208183 (Black) 5056547208190 (White)
