RGB Fans (2026) Specs

Jules
Updated

RGB Fans (2026)
F120 | F140 | F360 | F420


  • Spec Sheet
  • Downloads
  • Guides
  • FAQ

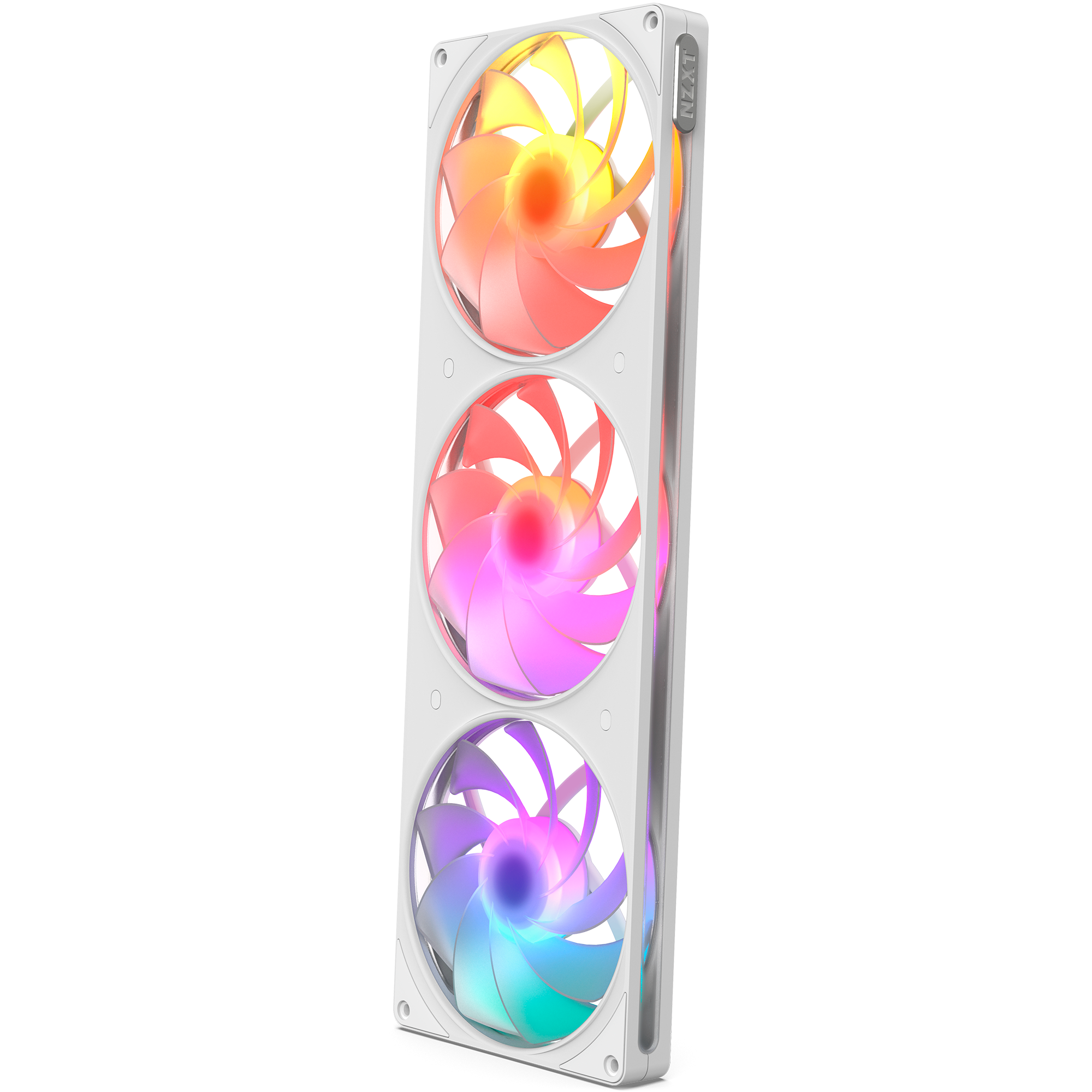

F420 RGB Reverse shown above.

F120 RGB & F140 RGB

Dimensions
 F120 RGBF140 RGB
Length120 mm140 mm
Width120 mm140 mm
Thickness25 mm
General
Fan TypeRGB Fan
RGB LightingHub-lit
# of LEDs9
Included in the Box
  • Four (4) Mounting Screws
Warranty5 Years
Fan Specs
Maximum Speed2,400 ± 240 RPM2,000 ± 200 RPM
Airflow70.67 CFM91.83 CFM
Static Pressure3.7 mm-H₂O4.23 mm-H₂O
Noise33.05 dBA34.03 dBA
Power Consumption (Fan)12V DC, 0.24A (2.88W)12V DC, 0.22A (2.64W)
Power Consumption (RGB)5V DC, 0.30A (1.50W)5V DC, 0.30A (1.50W)
Bearing TypeFluid Dynamic Bearing (FDB)
Fan Connector4-pin PWM
RGB Connector
  • 4-pin NZXT RGB
  • 3-pin 5V ARGB
Material
  • PBT
  • PC
  • Rubber
  • PCB
Life60,000 hours
Product Info
Model Number
  • RF-R212S-BF (Black)
  • RF-R212S-WF (White)
  • RF-R214S-BF (Black)
  • RF-R214S-WF (White)
UPC
  • 810074848510 (Black)
  • 810074848527 (White)
  • 810074848572 (Black)
  • 810074848589 (White)
EAN
  • 5056547208367 (Black)
  • 5056547208374 (White)
  • 5056547208428 (Black)
  • 5056547208435 (White)

F360 RGB / Reverse

Dimensions
 F360 RGBF360 RGB Reverse
Length360 mm
Width120 mm
Thickness25 mm
General
Fan TypeSingle-frame RGB FanReverse blade, Single-frame RGB Fan
RGB LightingHub-lit
# of LEDs9 per fan (27 total)
Included in the Box
  • Four (4) Mounting Screws
  • 8-pin NZXT PWM+RGB Adapter Cable
    • Adapts to 4-pin PWM (Fan), 4-pin NZXT RGB, and 3-pin 5V ARGB
Warranty5 Years
Fan Specs
Maximum Speed2,400 ± 240 RPM2,200 ± 220 RPM
Airflow70.67 CFM62.14 CFM
Static Pressure3.7 mm-H₂O2.7 mm-H₂O
Noise33.05 dBA34.39 dBA
Power Consumption (Fan)12V DC, 0.50A (6.00W)12V DC, 0.50A (6.00W)
Power Consumption (RGB)5V DC, 0.30A (1.50W)5V DC, 0.88A (4.50W)
Bearing TypeFluid Dynamic Bearing (FDB)
Fan Connector8-pin NZXT PWM+RGB
RGB Connector8-pin NZXT PWM+RGB
Material
  • PBT
  • PC
  • Rubber
  • PCB
Life60,000 hours
Product Info
Model Number
  • RF-R236U-BF (Black)
  • RF-R236U-WF (White)
  • RF-R236R-BF (Black)
  • RF-R236R-WF (White)
UPC
  • 810074848558 (Black)
  • 810074848565 (White)
  • 840465301027 (Black)
  • 840465301034 (White)
EAN
  • 5056547208404 (Black)
  • 5056547208411 (White)
  • 5056547209470 (Black)
  • 5056547209487 (White)

F420 RGB / F420 RGB Reverse

Dimensions
 F420 RGBF420 RGB Reverse
Length420 mm
Width140 mm
Thickness25 mm
General
Fan TypeSingle-frame RGB FanReverse blade, Single-frame RGB Fan
RGB LightingHub-lit
# of LEDs9 per fan (27 total)
Included in the Box
  • Four (4) Mounting Screws
  • 8-pin NZXT PWM+RGB Adapter Cable
    • Adapts to 4-pin PWM (Fan), 4-pin NZXT RGB, and 3-pin 5V ARGB
Warranty5 Years
Fan Specs
Maximum Speed2,000 ± 200 RPM1,900 ± 190 RPM
Airflow91.83 CFM96.28 CFM
Static Pressure4.23 mm-H₂O3.06 mm-H₂O
Noise34.03 dBA34.60 dBA
Power Consumption (Fan)12V DC, 0.68A (8.16W)12V DC, 0.80A (9.60W)
Power Consumption (RGB)5V DC, 0.88A (4.50W)5V DC, 0.88A (4.50W)
Bearing TypeFluid Dynamic Bearing (FDB)
Fan Connector8-pin NZXT PWM+RGB
RGB Connector8-pin NZXT PWM+RGB
Material
  • PBT
  • PC
  • Rubber
  • PCB
Life60,000 hours
Product Info
Model Number
  • RF-R242U-BF (Black)
  • RF-R242U-WF (White)
  • RF-R242R-BF (Black)
  • RF-R242R-WF (White)
UPC
  • 810074848619 (Black)
  • 810074848626 (White)
  • 840465301041 (Black)
  • 840465301058 (White)
EAN
  • 5056547208466 (Black)
  • 5056547208473 (White)
  • 5056547209494 (Black)
  • 5056547209500 (White)
