H6 (2026) Specs

Jules
Updated

H6 (2026)
Compact Dual-Chamber ATX Airflow Case

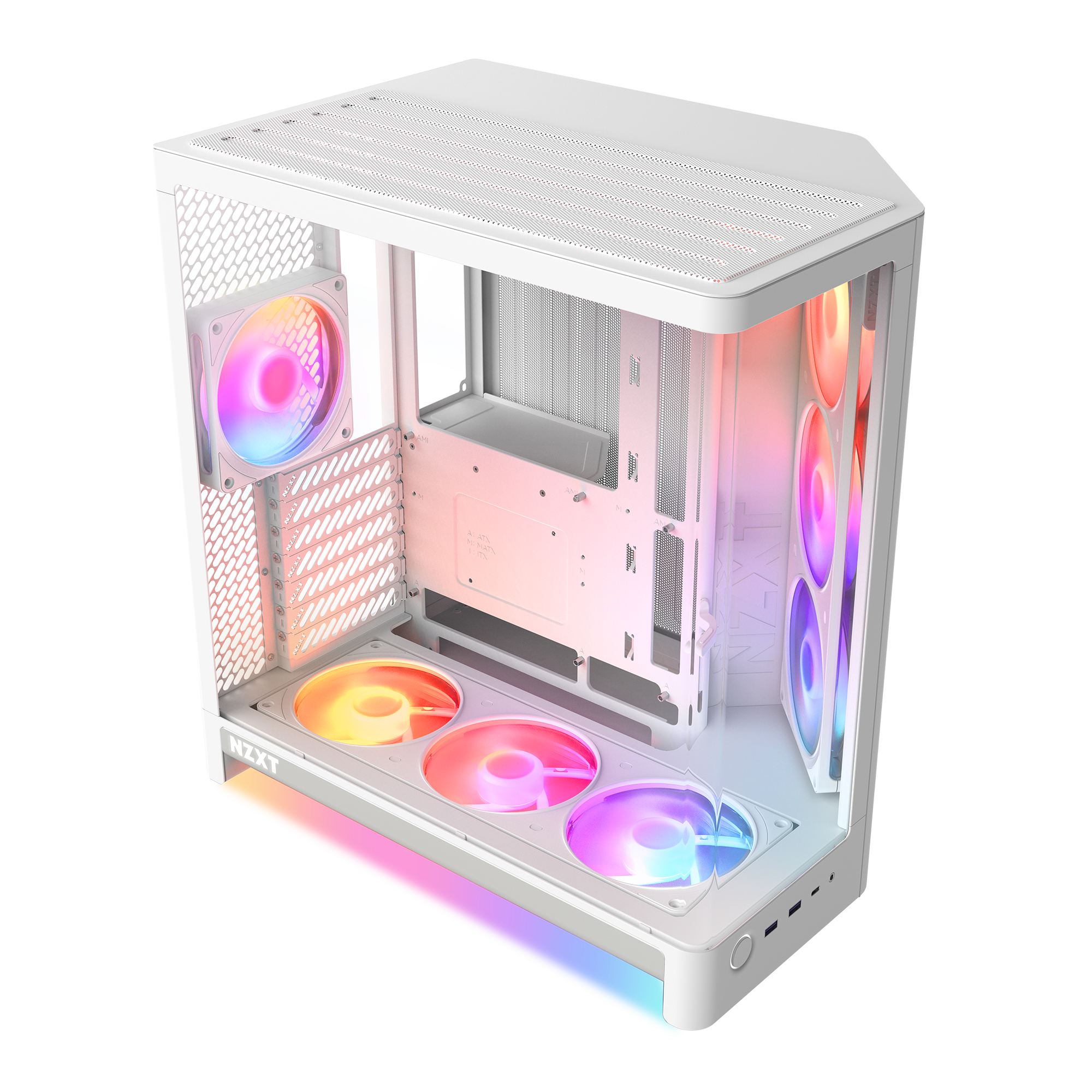

H6 RGB+ shown above.
Dimensions
Height (with Feet) 448 mm (17.7 in)
Width 292 mm (11.5 in)
Depth 420 mm (16.6 in)
Weight
  • H6 - 7.94 kg (17.5 lb)
  • H6 RGB+ - 9.3 kg (20.5 lb)
General
Enclosure Type Dual-chamber ATX case
Motherboard Compatibility ATX, Micro-ATX (mATX), Mini-ITX
Supports Back Connect Motherboards
(BTF, Project Zero, etc.) 		Yes (ATX only)
Included Controller Control Hub Lite (RGB+ model only)
RGB Lighting RGB+ Only
RGB Connection Type
  • 4-pin NZXT RGB
  • 8-pin NZXT RGB+PWM
Materials Steel, tempered glass
Warranty 2 Years
Clearance
CPU Cooler Height Up to 165 mm
GPU Length Up to 360 mm (w/ 30 mm Front-right fan installed)
PSU Length Up to 200 mm
Top Radiator + Fan Thickness Up to 67 mm
Front-Right Radiator + Fan Thickness Up to 30 mm (without limiting GPU length)
Cable Routing Depth Up to 90 mm
Front I/O Ports
USB 3.2 Type-A 2
USB 3.2 Gen 2x2 Type-C 1
3.5 mm Headset Jack 1
Expansion Slots
Standard 7
Vertical No
Vertical GPU Mounting Kit Compatible Yes*
* Only compatible with Vertical GPU Mounting Kits dated 2024 or newer.  For more information, please see refer to the Vertical GPU Mounting Kit FAQ.
Drive Bays
2.5" 2
3.5" 1
Fan Support
Front 3 x 120 mm
Top 3 x 120 mm
Bottom 3 x 120 mm
Rear 1 x 120 mm
Included Filters
  • Nylon dust filter (bottom)
  • Integrated fine-mesh (Top Panel, Side Panel)
Radiator Support
Top Up to 360 mm (total length:  400 mm)
Rear Up to 120 mm
Product Info
  H6 H6 RGB+
Model Number
  • CC-H62FB-01 (Black)
  • CC-H62FW-01 (White)
  • CC-H62FB-P1 (Black)
  • CC-H62FW-P1 (White)
UPC
  • 810074846875 (Black)
  • 810074846882 (White)
  • 810074846899 (Black)
  • 810074846905 (White)
EAN
  • 5056547209333 (Black)
  • 5056547209340 (White)
  • 5056547209357 (Black)
  • 5056547209364 (White)

Included Fans

  H6 (2026) H6 RGB+ (2026)
Front-Right None 1 x F360 RGB Reverse (2026)
Bottom None 1 x F360 RGB Reverse (2026)
Rear None 1 x F120 RGB (2026)

Fan & Controller Specs

NZXT Control Hub
Fan Channels
  • 2x NZXT 8-pin RGB & Fan (PWM only)
  • 1x 4-pin PWM Fan (PWM & DC Compatible)
RGB Channels
  • 2 x NZXT 8-pin RGB+PWM (PWM only)
  • 1 x 4-pin NZXT RGB
Max LED Support
  • Each NZXT 8-pin RGB+PWM channel supports a maximum of 96 LEDs
  • 4-pin NZXT RGB channel supports up to 40 LEDs across up to 5 NZXT RGB devices while daisy-chained.
Connectors
  • SATA Power
  • USB 2.0 Internal 9-pin
F120 RGB (2026)
Speed 2,400 ± 240 RPM
Airflow 70.67 CFM
Static Pressure 3.7 mm - H₂O
Noise 33.05 dBA
Fan Connector & Type 4-pin PWM
# of LEDs 8 per fan (Hub-lit)
RGB Connector Type 4-pin NZXT RGB, 3-pin 5V ARGB
F360 RGB Reverse (2026)
Speed 2,200 ± 220 RPM
Airflow 62.14 CFM per fan
Static Pressure 2.7 mm - H₂O
Noise 34.39 dBA
Fan Connector & Type 8-Pin NZXT RGB+PWM
# of LEDs 9 per fan (Hub-lit) (27 total)
RGB Connector Type 8-Pin NZXT RGB+PWM
