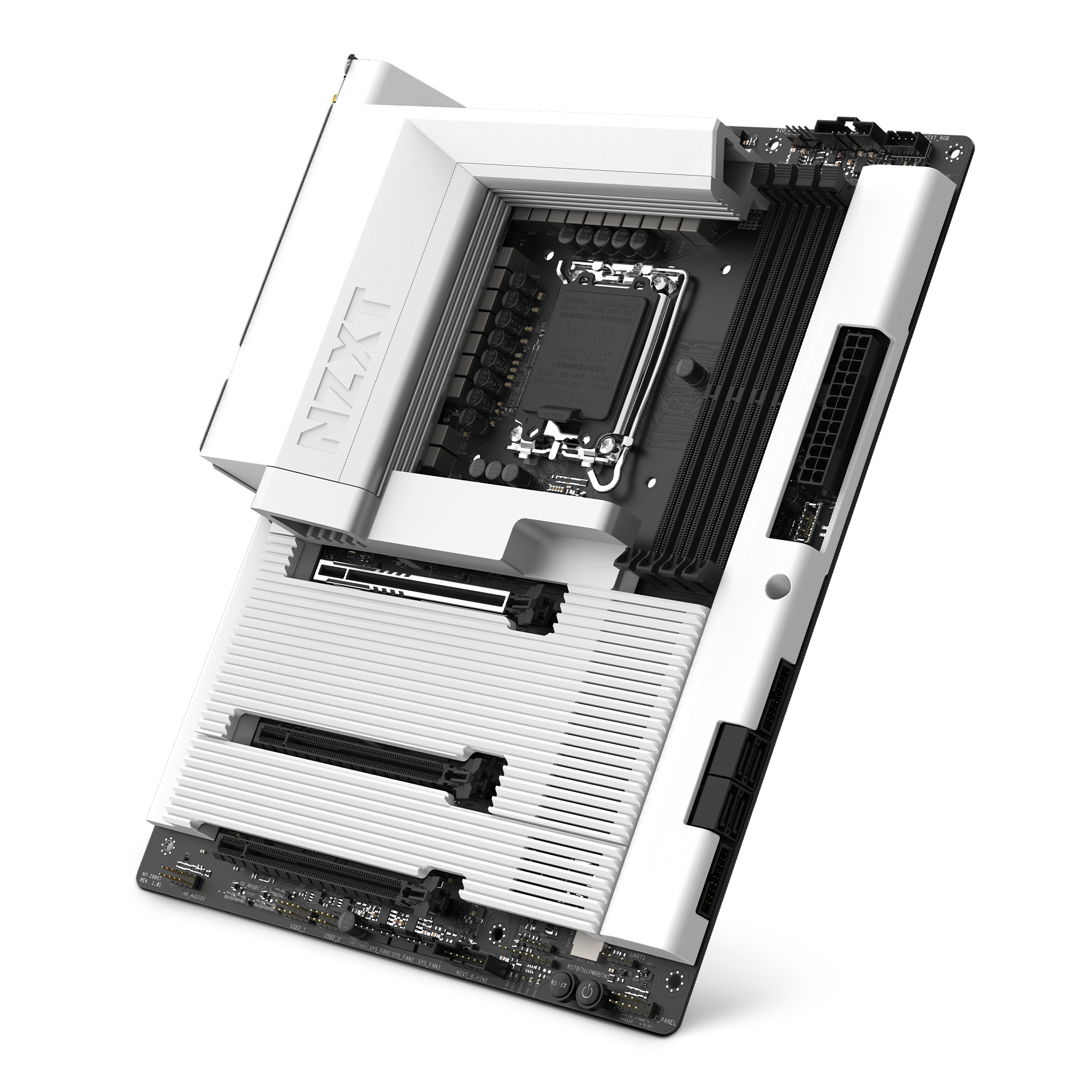

N7 Z890 Specs – NZXT Support Center

General
Form Factor	ATX
Chipset	Intel® Z890
Socket Type	Intel® Socket LGA 1851
CPU Support	Intel® Core™ Ultra Processors (Series 2)
DIMM Slots	4
Wireless Support	Dual-Band Wi-Fi 6E, Bluetooth 5.3
Thunderbolt™ Support	Thunderbolt™ 4
Operating System	Windows® 10 64-bit or newer
NZXT CAM Support	Yes
Warranty	3 Years
Memory
DIMM Type	DDR5 288-pin
Memory Architecture	Dual-Channel
Max Memory Capacity	192 GB
Max Memory Speed	Please refer to Memory QVL on the download page for further information.
Intel® Extreme Memory Profile (XMP) 3.0 Support	Yes
Integrated Graphics & Audio
Audio Codec	Realtek® ALC1220 Audio Codec
Graphics Controller	Intel® UHD Graphics Requires Intel® CPU with integrated graphics controller. Refer to CPU specs for more information.
Integrated Graphics Output	1 x HDMI™ port, supports HDCP 2.3 2 x Thunderbolt™ 4, supports HDCP 2.3* Requires Intel® CPU with integrated graphics controller. Refer to CPU specs for more information. * Only the CPU's embedded graphics can be displayed via Thunderbolt™ ports. Thunderbolt™ graphics output may not be compatible with certain Type-C monitors.
Maximum Resolution	3840 x 2160 @ 60 Hz
Expansion Support
PCIe Slots	PCIEX16_1 PCIe 5.0 x16 (supports x16 mode) via CPU PCIEX16_2 & PCIEX16_3 PCIe 4.0 x 16 (supports x4 mode) via Chipset
Storage Support
M.2 Type 2242/2260/2280 Slots (M-Key)	4
M.2 Slots	M2_1 Blazing M.2 Socket, PCIe 5.0 (supports x4 mode) @ 128 Gb/s via CPU Supports 2280 form factor M2_2 Hyper M.2 Socket, PCIe 4.0 (supports x4 mode) @ 64 Gb/s via CPU Supports 2280 form factor M2_3 Hyper M.2 Socket, PCIe 4.0 (supports x4 mode) @ 64 Gb/s via Chipset Supports 2280 form factor M2_4 Hyper M.2 Socket, PCIe 4.0 (supports x4 mode) @ 64 Gb/s or SATA3 6.0 Gb/s via Chipset Supports 2280 form factor
SATA 6Gb/s Ports	4
RAID Support	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for NVMe storage devices
Supports NVMe SSD as boot disks	Yes
Network and Wireless Support
Onboard LAN Controller	Realtek® RTL8125BG 2.5 Gigabit LAN 10/100/1000/2500 MB/s Supports Dragon 2.5G LAN Software
Onboard WLAN (WiFi) Controller	802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 160MHz with extended 6GHz band* support Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available. A 6GHz compatible router is required for 6E functionality.
Bluetooth Version	Bluetooth V5.3
Included Antenna(s)	2x "Pen Type" RP-SMA Male Compatible
Rear I/O
Thunderbolt™ 4 / USB 4 Type-C Port 40 Gb/s for Thunderbolt™ protocol; 40 Gb/s for USB 4 protocol Supports USB PD 3.0 up to 5V@3A (15W) charging	2
USB 3.2 Gen 2 (Type-A)	4
USB 3.2 Gen 1 (Type-A)	3
USB 3.2 (Type-C)	1
HDMI™ port	1
Wireless Antenna	2 (2T2R)
LAN (RJ45)	1
Audio Jacks	1 x Line Out 1 x Microphone 1 x Optical SPDIF Out
Additional Features	1 x BIOS Flashback Button 1 x Clear CMOS Button
Internal I/O
M.2 (M-Key) Slot	4
M.2 (E-Key) Slot	1 * * For included wireless card
SATA 6Gbps Port	4
USB 3.2 Gen 2 Header (for Type-C)	1
USB 3.2 Gen 1 Header (for Type-A)	2 (Up to 2 ports per header)
USB 2.0 Header	2 (Up to 2 ports per header)
Front Panel Audio	1
4-pin PWM Fan Header	1 x CPU_FAN 1 x AIO_PUMP 3 x SYS_FAN
NZXT RGB + PWM Header (8-pin)	2
NZXT RGB (4-pin)	1
5V ARGB Header	2 * * Supports up to 40 LEDs per header
ATX Power Header	1 x 24-pin ATX Power 2 x 8-pin ATX 12V Power
Additional Features	1 x Power Button 1 x Reset Button 1 x Digital Debug LED 1 x POST LEDs
Product Info
Model Number	N7-Z89XT-B1 (Black) N7-Z89XT-W1 (White)
UPC	810074846271 (Black) 810074846264 (White)
EAN	5056547206219 (Black) 5056547206202 (White)
