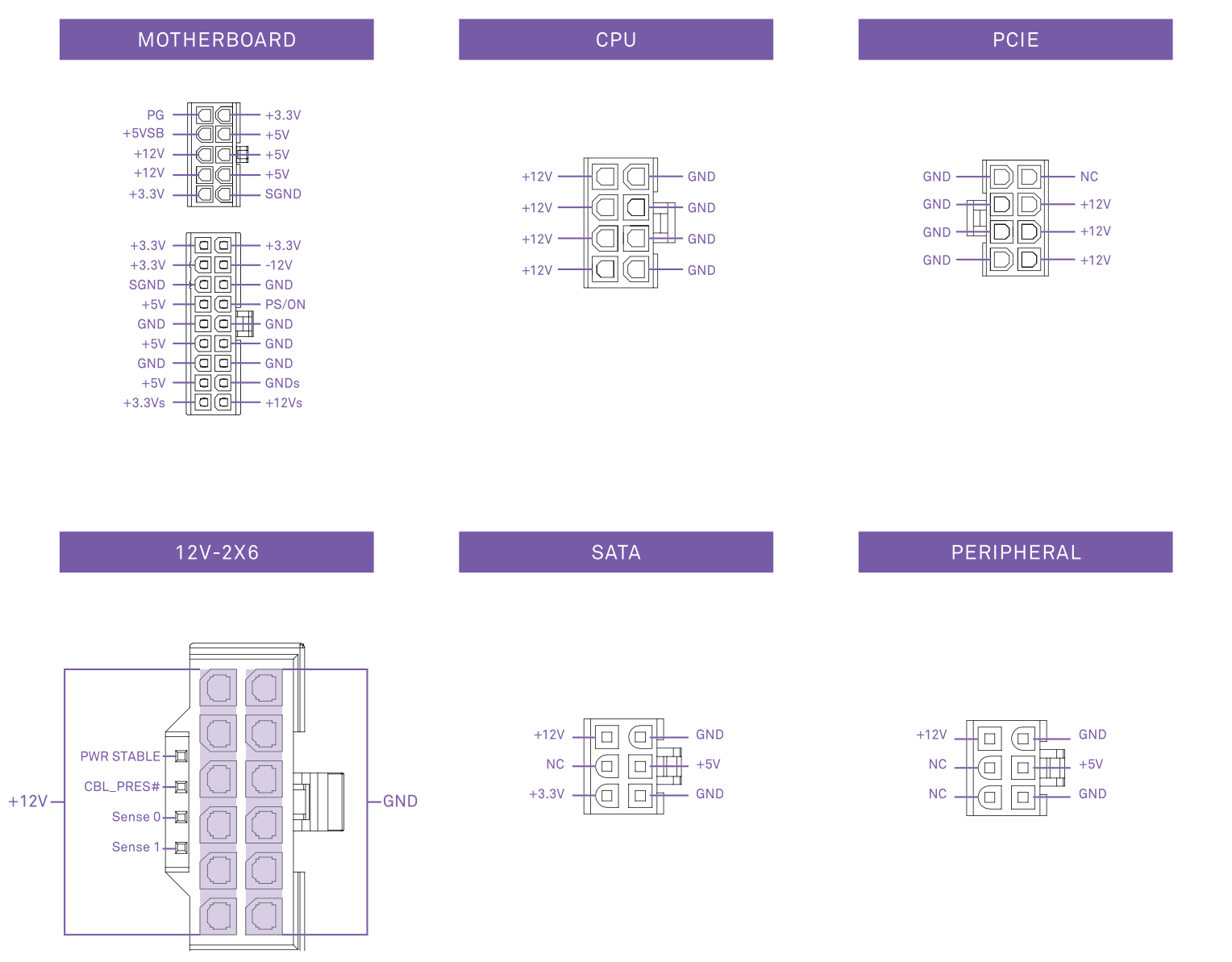

The below pinout diagram is provided as a reference for the C Series Gold Core power supplies. This pinout is valid only for the following models:
| C750 Gold Core | C850 Gold Core | C1000 Gold Core |
|
|
|
C Series Gold Core (2025) Pinout Diagram
