N7 B650E Specs

Updated
Have more questions? Submit a request

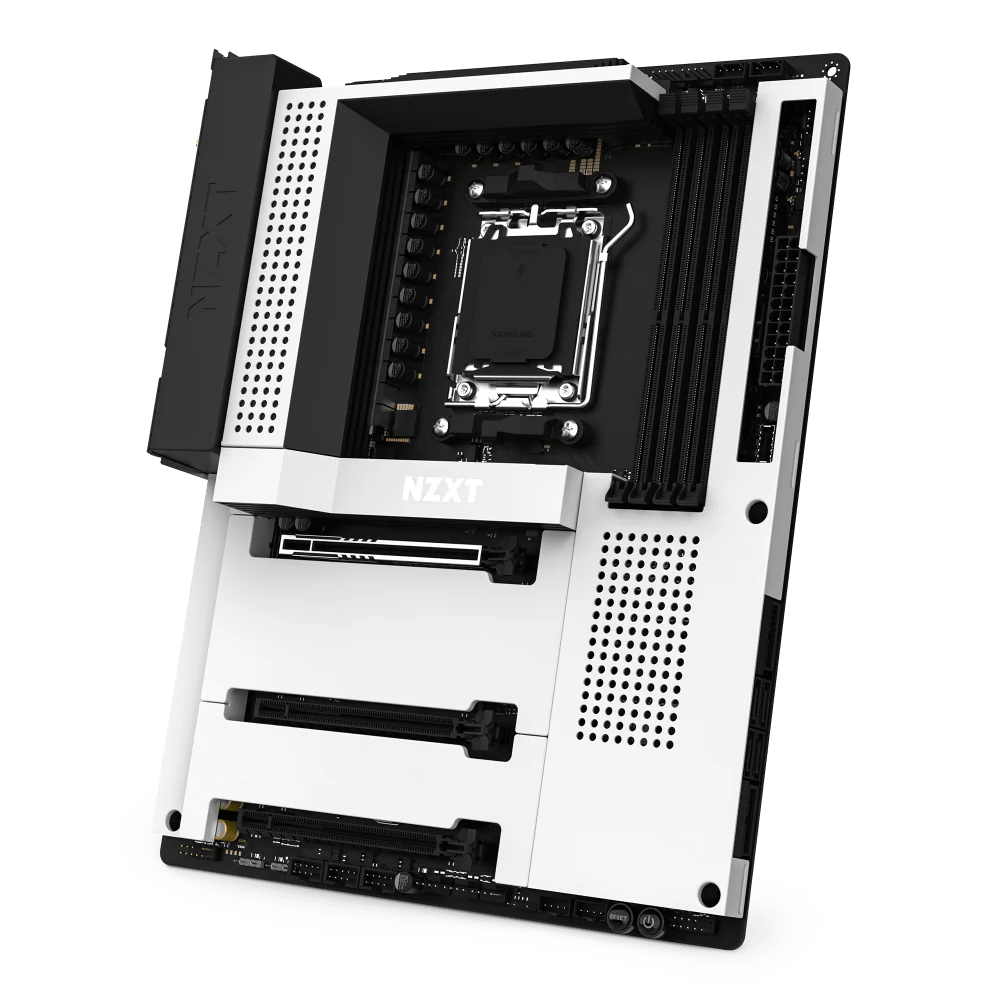

N7 B650E
AMD AM5 Motherboard with Wi-Fi

General
Form Factor ATX
Chipset AMD® B650E
Socket Type AMD® AM5
CPU Support
  • AMD Socket AM5 Ryzen™ Processors
    • 7000 Series*
    • 8000 & 9000 Series**

* BIOS version 1.21 required for AMD® Ryzen™ 7000 Series X3D CPUs.

** BIOS version 3.01 or newer required for  AMD® Ryzen™ 8000 & 9000
DIMM Slots 4
Wireless Support Dual-Band WiFi 6E, Bluetooth 5.2
Operating System Windows® 10 64-bit or newer
NZXT CAM Support Yes
Warranty 3 Years
Memory
DIMM Type DDR5 288-pin
Max Memory Capacity 128GB
Memory Architecture Dual-Channel
Max Memory Speed Please refer to Memory QVL on the download page for further information.
XMP Support Yes
AMD EXPO Support Yes
Integrated Graphics & Audio
Audio Codec ALC1220 Codec
Graphics Controller AMD RDNA™ Graphics
(Requires a supported AMD Ryzen CPU with embedded graphics)
Integrated Graphics Output HDMI 2.1, supports HDR & HDCP 2.3
Maximum Resolution 4830 x 2160 (4K) @ 60Hz
Expansion Support
PCIe Slots

PCIEX16_1

  • PCIe 5.0 x16 (Supports x16 Mode) via CPU
  • Supports NVMe SSD as boot disks.

PCIEX16_2 & PCIEX16_3

  • PCIe 4.0 x16 (Supports x2 Mode) via Chipset
  • Supports NVMe SSD as boot disks.
M.2 Socket (E-Key) 1 (Supports 2230 form factor Wi-Fi/BT PCIe modules) via Chipset
Storage Support
M.2 Type 2242/2260/2280 Slots
(M-Key) 		3
M.2 Slots

M.2_1

  • PCIe 5.0 (Supports x4 Mode) via CPU
  • Supports 2242, 2260, & 2280 form factor
  • Supports NVMe SSD as boot disks.

M.2_2

  • PCIe 4.0 (Supports x4 Mode) via CPU
  • Supports 2242, 2260, & 2280 form factor
  • Supports NVMe SSD as boot disks.

M.2_3

  • PCIe 4.0 (Supports x2 Mode) via Chipset
  • Supports 2242, 2260, & 2280 form factor
  • Supports NVMe SSD as boot disks.
SATA 6Gb/s Ports 4
RAID Support
  • Supports RAID 0/1/10 for SATA storage devices
  • Supports RAID 0/1/10 for M.2 NVMe storage devices
Network and Wireless Support
Onboard LAN Controller Realtek® RTL8125BG 2.5G LAN
Onboard WLAN (WiFi) Controller

MediaTek MT7921K (RZ608) Wi-Fi 6E

  • Supports IEEE 802.11 a/b/g/n/ac/ax
  • Supports Dual Band 2x2 with extended 6GHz band support*
  • Supports MU-MIMO
  • Supports Bluetooth + High speed class II

* Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11.  Availability may vary by country and region. A 6GHz compatible router is required for 6E functionality.
Bluetooth Version 5.2
Included Antenna(s) 2x "Pen Type" RP-SMA Male Compatible
Rear I/O
USB 3.2 Gen 2 (Type-C) 1
USB 3.2 Gen 2 (Type-A) 2
USB 3.2 Gen 1 (Type-A) 4
USB 2.0 (Type-A) 2
Wireless Antenna 2
LAN (RJ45) 1
HDMI™ 2.1 1
Audio Jacks

1 x Center/Subwoofer

1 x Rear Surround

1x Line In

1 x Line Out (Speaker Left/Right)

1 x Microphone

1 x Optical SPDIF Out
Additional Features

1 x BIOS Flashback Button

1 x Clear CMOS Button
Internal I/O
M.2 (M-Key) Slot 3
M.2 (E-Key) Slot 1
SATA 6Gbps Port 4
USB 3.2 Gen 2 Header (for Type-C) 1
USB 3.2 Gen 1 Header (for Type-A) 1
USB 2.0 Header 2
Front Panel Audio 1
4-pin PWM Fan Header
  • 1 x 4-pin (PWM) CPU_FAN connector (Up to 24W per channel)
  • 1 x 4-pin (PWM) AIO_PUMP connector (Up to 24W per channel)
  • 5 x 4-pin (PWM) SYS_FAN connectors (Up to 24W per channel)
NZXT RGB Header (4-pin) 4
5V ARGB Header 2
ATX Power Header
  • 1x 24-pin ATX Power Connector
  • 1x 8+4-pin ATX 12V Power Connector
Additional Features
  • Power Button
  • Reset Button
  • POST LEDs
Product Info
Model Number
  • N7-B65XT-B1 (Black)
  • N7-B65XT-W1 (White)
UPC
  • 810074842884 (Black)
  • 810074842877 (White)
EAN
  • 5056547202822 (Black)
  • 5056547202815 (White)
