This guide will cover replacing the Top I/O module on the H5 Flow case.  For this replacement you will need the following:

• A replacement Top I/O Module (aka USB Module)
• Phillips #1 Screwdriver

H5 Flow (2024) Guide

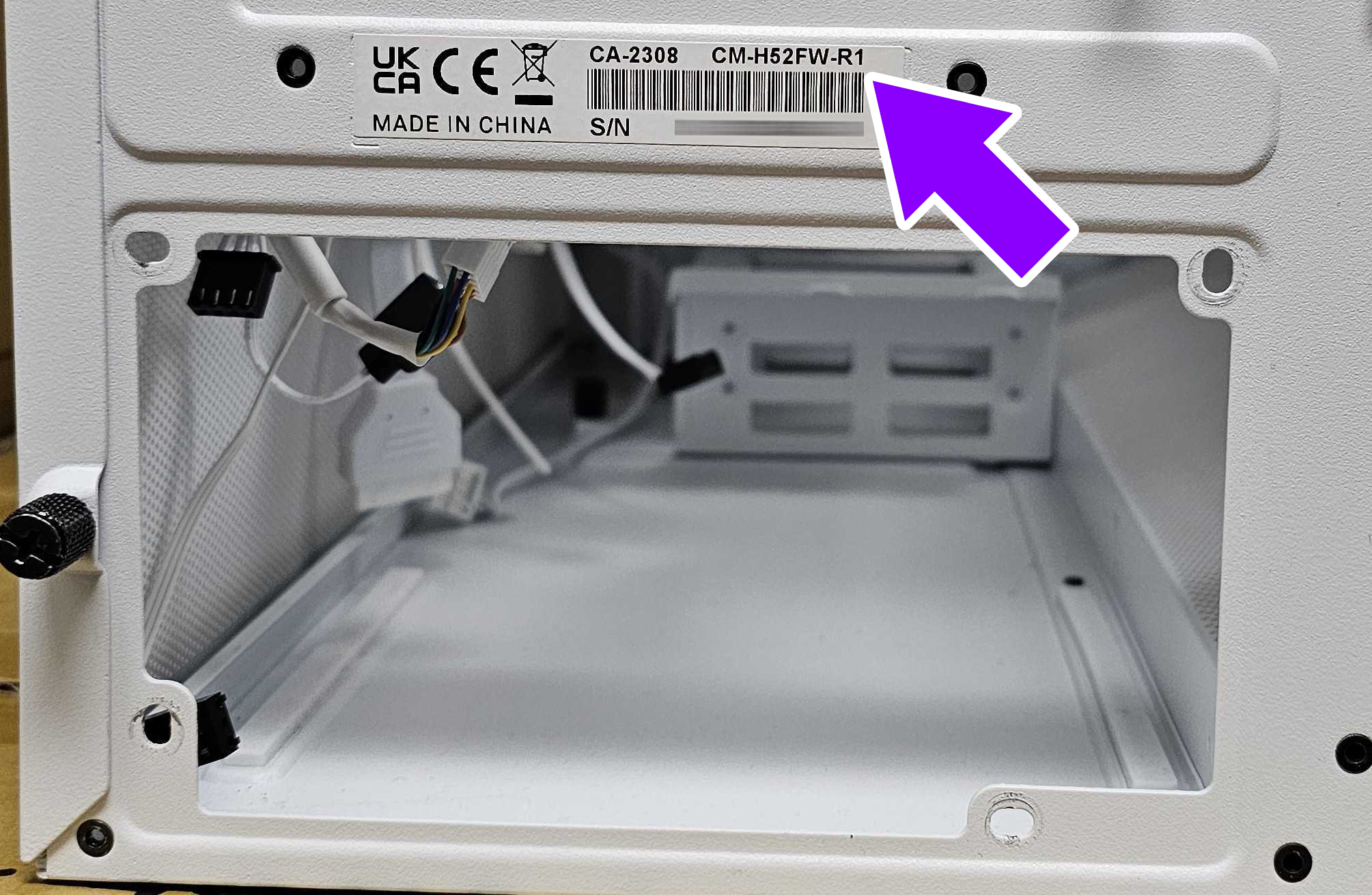

This guide is specifically for the H5 Flow and H5 Flow RGB released in August 2024.  This version of the case can be easily identified by checking the Model# located on the rear of the case: Case name Model # H5 Flow CC-H52FB-01 (Black) CC-H52FW-01 (White) H5 Flow RGB CC-H52FB-R1 (Black) CC-H52FW-R1 (White)

Preparing the Case

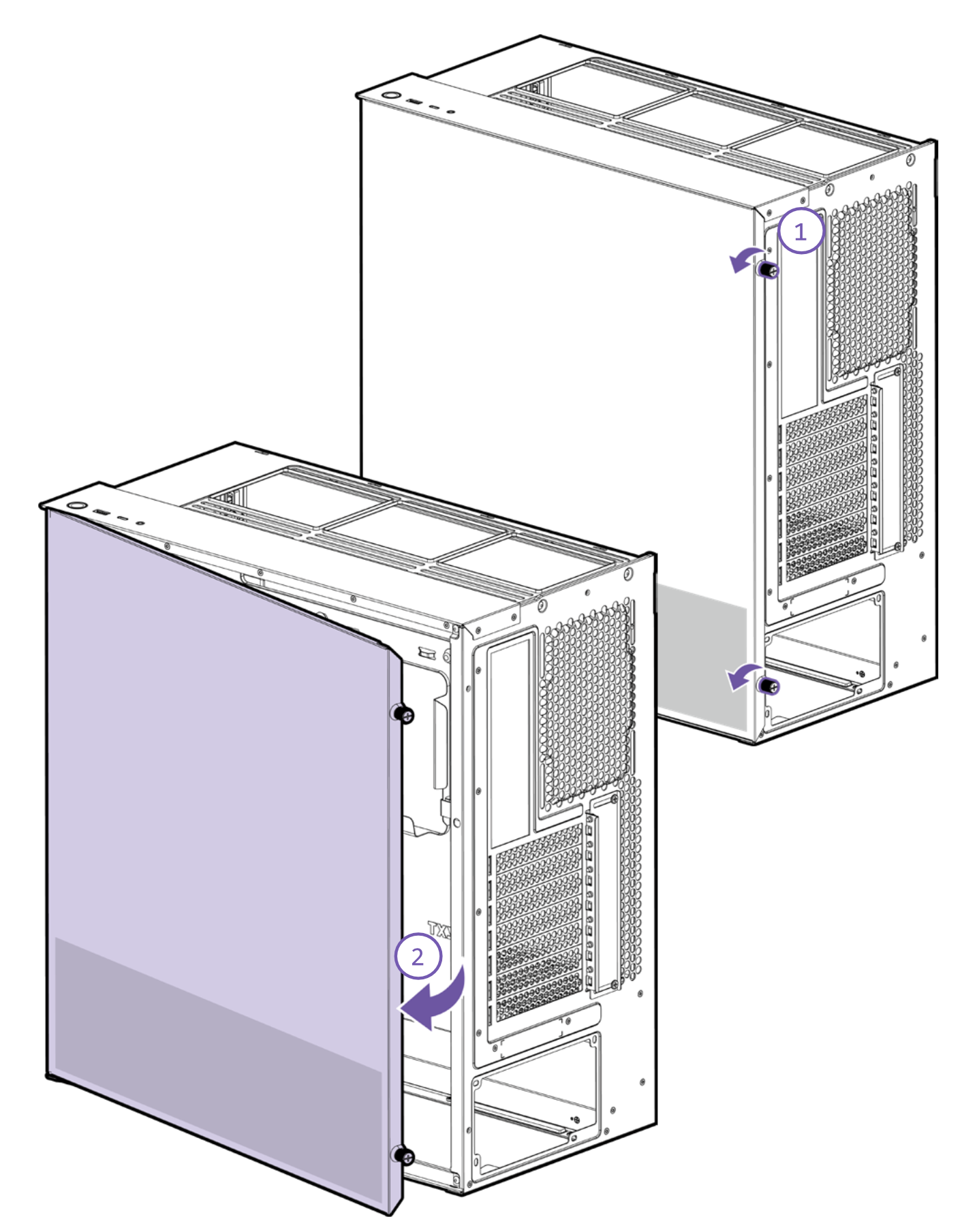

To replace the Top I/O module, you will need to remove the metal side panel from the case.  This panel is held on with two locking screws that can be accessed from the back of the case as shown below:

Once the metal side panel is removed, you will have easy access to the Top I/O module in the in the top-left corner behind the motherboard tray.

Removing the I/O Module

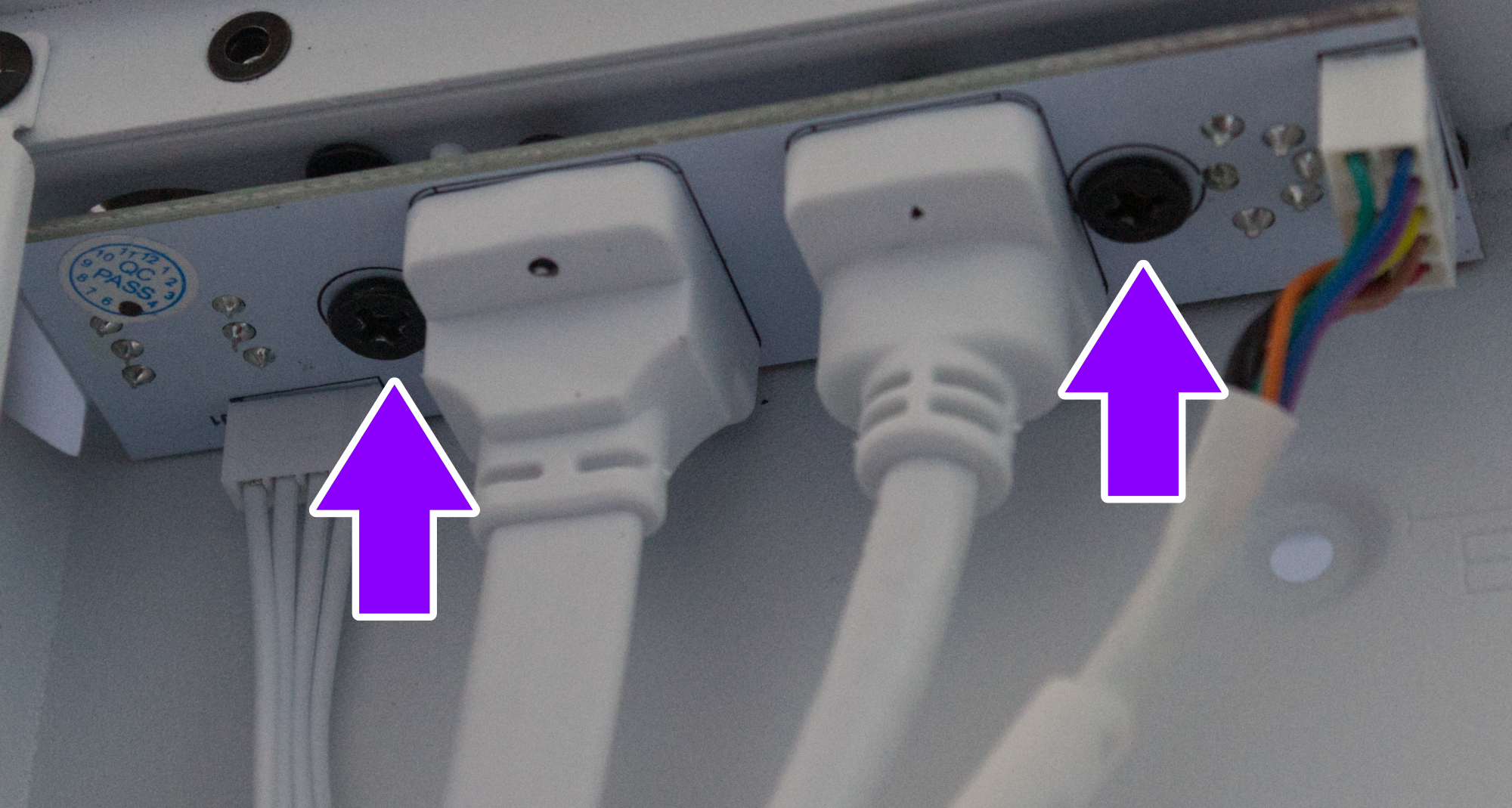

To remove the Top I/O module, use your Phillips #1 screwdriver to remove the two screws holding the module in place.  Once the screws are removed, the panel should easily come loose.

To install the new Top I/O module, follow these instructions in reverse order.
