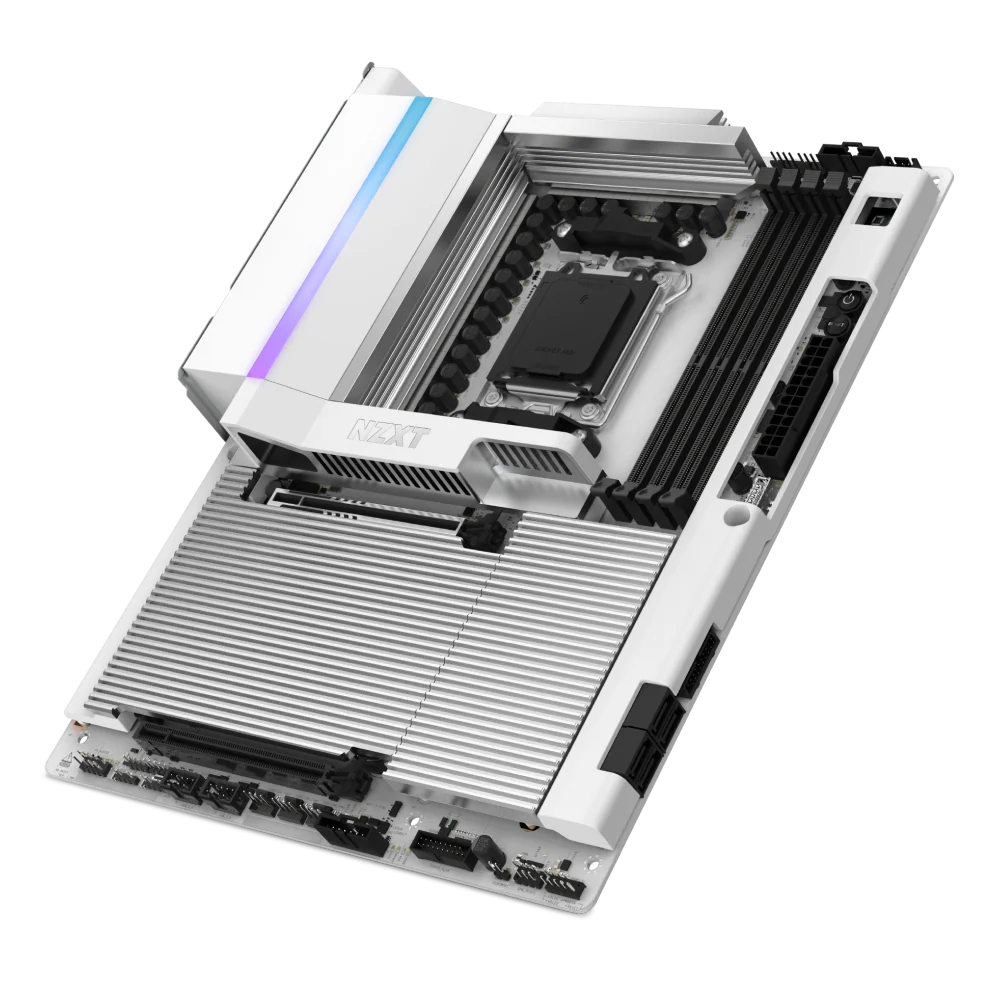

N9 X870E Specs

• AMD® Socket AM5 Ryzen™ Processors
  • 7000, 8000, and 9000* Series

* BIOS version 3.20 required for44 9800X3D support.  See note at bottom of spec sheet for more details.

2 x USB4, Supports HDCP 2.3

Only the CPU's embedded graphics can be displayed through USB4 ports.  To display to a USB-C monitor, please use AM5 Ryzen™ 9000, 8000, or 7000 processors with embedded graphics support.

PCIEX16_1

• PCIe 5.0 x16 (supports x16 mode) via CPU

PCIEX16_2

• PCIe 3.0 x 16 (supports x2 mode) via Chipset

M2_1

• Blazing M.2 Socket, PCIe 5.0 (supports x4 mode) @ 128 Gb/s via CPU
• Supports 2280 form factor

M2_2, M2_3, M2_4

• Hyper M.2 Socket, PCIe 4.0 (supports x4 mode) @ 64 Gb/s via Chipset
• Supports 2280 form factor

• Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1, and RAID 10 for NVMe storage devices

Realtek® RTL8126CG

• 5 Gigabit LAN 10/100/1000/2500/5000 MB/s

MediaTek MT7925B232M Wi-Fi 7

• Supports IEEE 802.11 a/b/g/n/ac/ax/axe/be
• Supports 2.4 GHz / 5 GHz / 6 GHz* frequency band
• Supports 160 MHz channel bandwidth with 6 GHz* frequency band
• 1 antenna to support 2 (transmit) x 2 (receive) diversity technology
• Supports Bluetooth
• Supports MU-MIMO

* Wi-Fi 7 (6GHz band) will be supported by Microsoft® Windows® 11.  The availability will depend on the different regulation status of each country and region.  It will be activated (for supported countries) through Windows Update and software updates once available.

• 1 x Line Out
• 1 x Microphone
• 1 x Optical SPDIF Out

• 1 x BIOS Flashback Button
• 1 x Clear CMOS Button

• 1 x CPU_FAN
• 1 x AIO_PUMP
• 3 x SYS_FAN

• 1 x 24-pin ATX Power
• 2 x 8-pin ATX 12V Power

• 1 x Power Button
• 1 x Reset Button
• 1 x Digital Debug LED
• 1 x POST LEDs

• N9-X87XT-B1 (Black)
• N9-X87XT-W1 (White)

• 810074847308 (Black)
• 810074847292 (White)

• 5056547207261 (Black)
• 5056547207254 (White)
