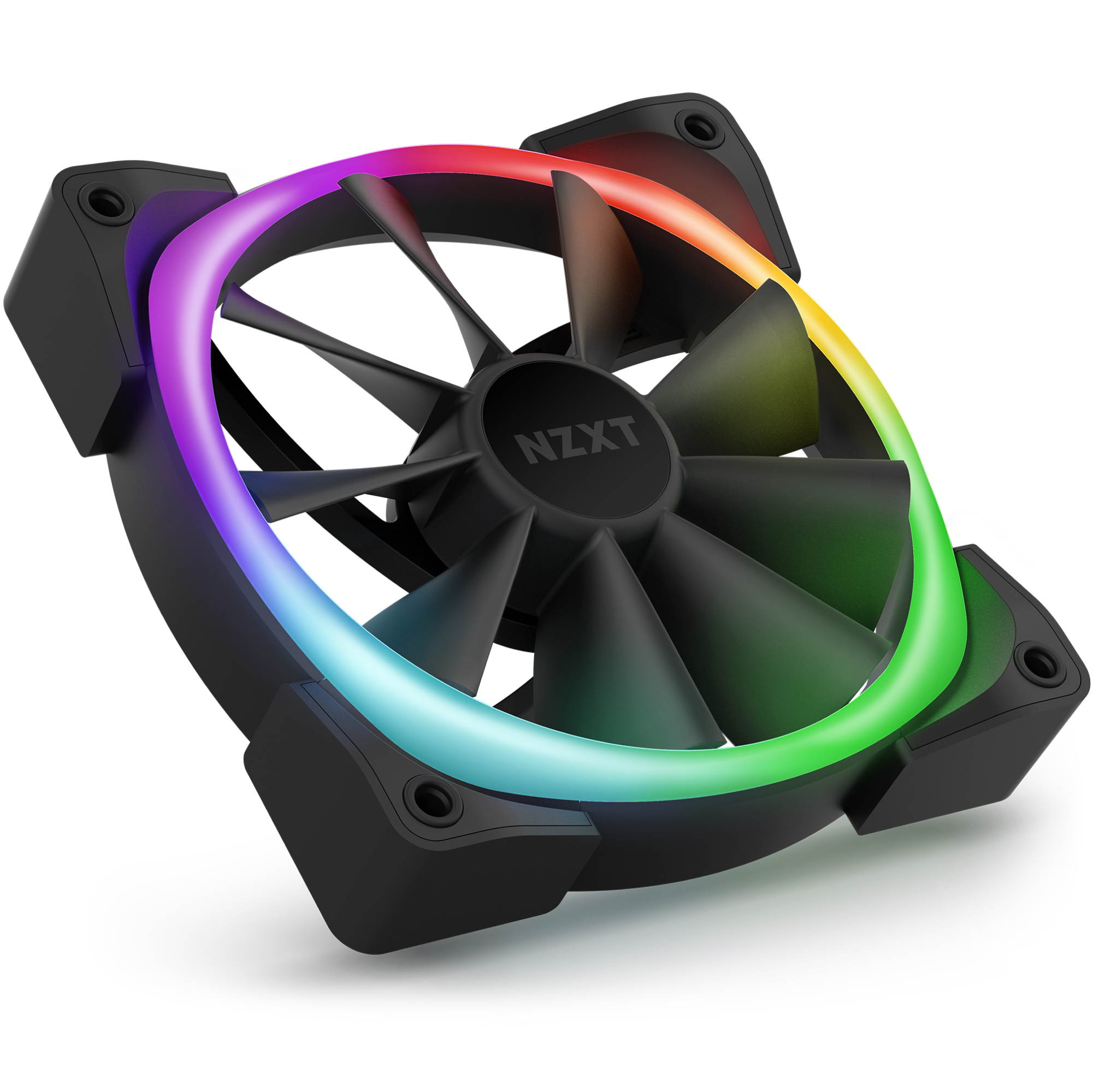

Aer 2 RGB 120 mm Fan Specs – NZXT Support Center

End-of-Life Product

The following spec sheet is for an end-of-life product that is no longer in production and is provided for reference purposes.

Dimensions
Height	120 mm
Width	120 mm
Thickness	26 mm
General
Fan Type	RGB Case Fan
RGB Lighting	Yes
RGB Connection	4-pin NZXT RGB (NZXT RGB Controller required)
Number of LEDs	8 LEDs per fan
Required Software	NZXT CAM Windows 10 or newer required for NZXT CAM software.
Included in the Box	Single Pack Aer 2 RGB 120 mm Fan Fan Connection Cable (500 mm) NZXT RGB Fan-to-Fan Cable (500 mm) NZXT RGB Fan-to-Accessory Cable (500 mm) 4 x CB5 Fan Mounting Screws	Triple Pack 3 x Aer 2 RGB 120 mm fan NZXT RGB & Fan Controller (2019) Fan Connection Cable (500 mm) 2 x NZXT RGB Fan-to-Fan Cable (500 mm) NZXT RGB Fan-to-Accessory Cable (500 mm) 1-to-3 4-pin PWM Fan Splitter (350 mm) 2 x 3M Dual-Lock Tape 2 x Magnets 12 x CB5 Fan Mounting Screws
Warranty	2 Years
Fan Specs
Speed	500 - 1,500 ± 300RPM
Airflow	17.48 - 52.44 CFM
Static Pressure	0.15 - 1.35 mm-H₂O
Noise	22 - 33 dBA
Power Consumption	12V DC, 0.2A (2.4W)
Bearing Type	Fluid Dynamic Bearing (FDB)
Fan Connector	4-pin PWM
Material	Plastic, Rubber, PCB
Life	60,000 Hours (6 Years)
Product Info
Model Number	Single Pack HF-28120-B1(Black) HF-28120-BW (White)	Triple Pack HF-2812C-TB (Black) HF-2812C-TW (White)
UPC	Single Pack 815671014467 (Black) 815671016508 (White)	Triple Pack 815671015198 (Black) 815671016485 (White)
EAN	Single Pack 5060301694761 (Black) 5060301697151 (White)	Triple Pack 5060301696475 (Black) 5060301697144 (White)
