H5 (2022) Series Specs

Jules
Updated

H5 (2022)
Compact ATX Mid-Tower
Flow | Flow RGB | Elite

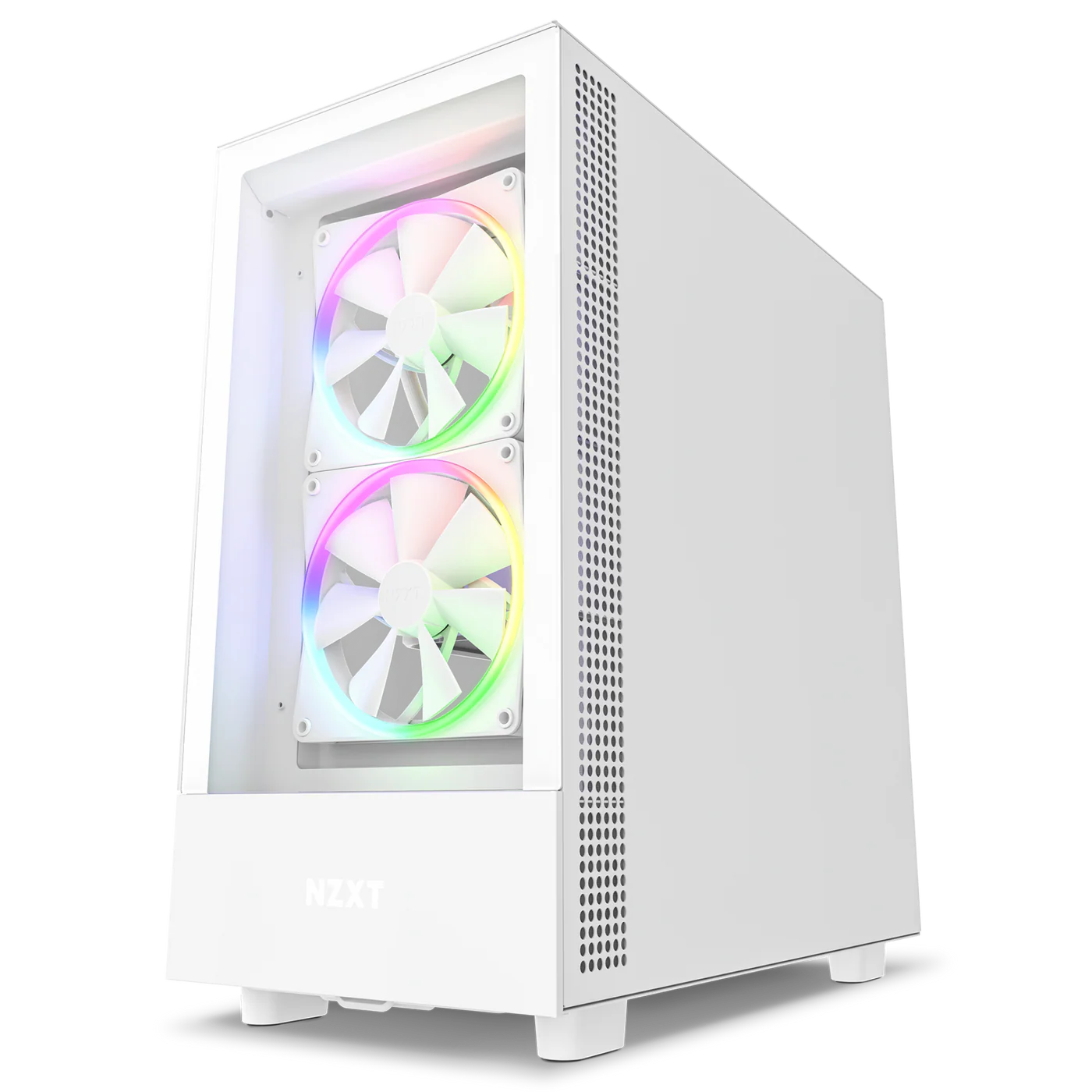

H5 Elite (2022) shown
Dimensions
Height (with Feet) 464 mm (18.27 in)
Width 227 mm (8.94 in)
Depth 446 mm (17.56 in)
Weight
  • H5 Elite (2022) - 8.1 kg (17.86 lb)
  • H5 Flow (2022) - 7.01 kg (15.46 lb)
  • H5 Flow RGB (2023) - 7.36 kg (16.23 lb)
General
Enclosure Type Compact ATX Mid-Tower
Motherboard Compatibility
  • ATX
  • Micro-ATX
  • Mini-ITX
Supports Back Connect Motherboards
(BTF, Project Zero, etc.) 		No
Included Controller NZXT RGB Controller (H5 Elite Only)
RGB Lighting

Elite and Flow RGB Only

  • 4-pin NZXT RGB w/ Controller (H5 Elite)
  • 4-pin NZXT RGB w/ 3-pin Addressable RGB Splitter
    (H5 Flow RGB)
Materials
  • SGCC Steel
  • Ultra-clear Tempered Glass (White)
  • Dark Tinted Tempered Glass (Black)
Warranty 2 Years
Clearance
CPU Cooler Height 165 mm
GPU Length Up to 365 mm (w/o front fans or radiator)
Cable Management Clearance Up to 23 mm
Front Fan & Radiator Clearance Up to 45 mm
Front I/O Ports
USB 3.2 Type-A 1
USB 3.2 Gen 2x2 Type-C 1
3.5 mm Headset Jack 1
Expansion Slots
Standard 7
Vertical 0
Vertical GPU Mounting Kit Compatible Yes
Drive Bays
2.5" 1 + 1
3.5" 1
Fan Support
Front
  • Up to 2 x 120 mm
  • Up to 2 x 140 mm
Top
  • Up to 2 x 120 mm
Rear
  • 1 x 120 mm
Bottom
  • 1 x 120 mm
Included Filters All Air Intakes
Radiator Support
Front
  • Up to 240 mm (120 mm base)
  • Up to 280 mm (140 mm base)
Top
  • Up to 240 mm (120 mm base)
Rear
  • Up to 120 mm
Product Info
Model Number

H5 Elite (2022)

  • CC-H51EB-01 (Black)
  • CC-H51EW-01 (White)

H5 Flow (2022)

  • CC-H51FB-01 (Black)
  • CC-H51FW-01 (White)

H5 Flow RGB (2023)

  • CC-H51FB-R1 (Black)
  • CC-H51FW-R1 (White)
UPC

H5 Elite

  • 810074842440 (Black)
  • 810074842457 (White)

H5 Flow (2022)

  • 810074842419 (Black)
  • 810074842426 (White)

H5 Flow RGB (2023)

  • 810074843638 (Black)
  • 810074843645 (White)
EAN

H5 Elite

  • 5056547202365 (Black)
  • 5056547202372 (White)





H5 Flow (2022)

  • 5056547202334 (Black)
  • 5056547202341 (White)

H5 Flow RGB (2023)

  • 5056547203553 (Black)
  • 5056547203560 (White)

Included Fans

  H5 Elite (2022) H5 Flow (2022) H5 Flow RGB (2023)
Front 2 x F140 RGB Fan None 2 x F140 RGB Core Fan
(Case Version)
Top None None None
Rear None 1 x F120Q Airflow Fan
(Case Version)		 1 x F120Q Airflow Fan
(Case Version)
Bottom 1 x F120Q Airflow Fan
(Case Version)		 1 x F120Q Airflow Fan
(Case Version)		 1 x F120Q Airflow Fan
(Case Version)

Fan & Controller Specs

NZXT RGB Controller (H5 Version)
RGB Channels 3
RGB Connection Type 4-pin NZXT RGB (40 LEDs per channel, 120 LEDs total)
Power Connection SATA Power
Data Connection USB 2.0 Internal
F120Q Airflow Fan (Case Version)
Speed 1,200 ± 120RPM
Airflow 62.18 CFM
Static Pressure 2.06 mm-H₂O
Noise 25.1 dBA
Fan Connector & Type 3-pin DC
F140 RGB Fan
Speed 500 - 1800 RPM
Airflow 24.85 - 89.48 CFM
Static Pressure 0.94 - 3.39 mm-H₂O
Noise 20 - 32.5 dBA
Fan Connector & Type 4-pin PWM
RGB Connector 4-pin NZXT RGB
F140 RGB Core Fan (Case Version)
Speed 1,200 ± 120RPM
Airflow 61.74 CFM
Static Pressure 2.06 mm-H₂O
Noise 29.05 dBA
Fan Connector & Type 3-pin DC
RGB Connector 4-pin NZXT RGB w/ 3-pin 5V ARGB Adapter Splitter
