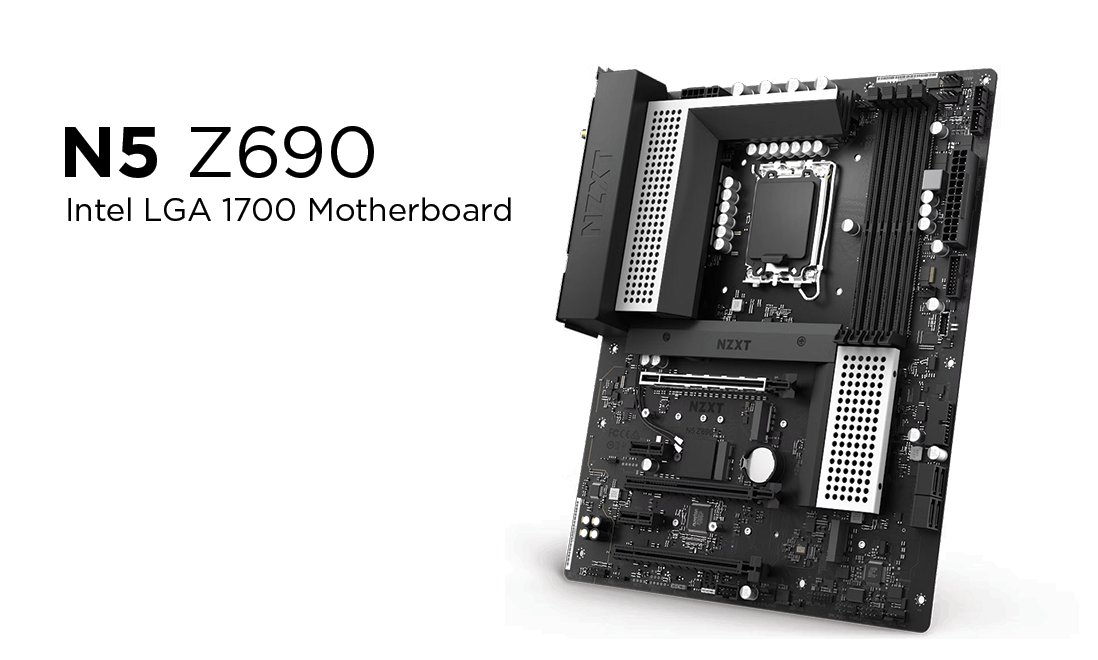

N5 Z690 Specs

• Intel® 14th Generation CPUs *
• Intel® 13th Generation CPUs *
• Intel® 12th Generation CPUs

See CPU Support List for more details.
* Intel® 13th & 14th Generation support may require an additional BIOS update prior to installation.

4

WiFi 6E, Bluetooth 5.2

AMD Quad CrossFireX™ and CrossFireX™ *

* Only supported on PCIe Gen 3 x1 Slots

• Intel® Hybrid Technology
• Intel® Turbo Boost Max 3.0 Technology

Dual Channel

• 2933 MHz
• 2800 MHz
• 2666 MHz
• 2400 MHz
• 2133 MHz

• 5000+ MHz (Overclock) *

Please refer to Memory QVL for more details.

* Supports DDR4 3200 MHz natively

• Non-ECC un-buffered memory
• Supports ECC UDIMM Memory (operates in non-ECC mode)

Yes

• Intel® Xe Graphics

• HDMI™ 2.1 TMDS Compatible

• 4096 x 2160 @ 60Hz

• HDCP 2.3 Compatible

1

1

1

PCIEX16_1 *

• PCIe Gen 5 x16

PCIEX16_2 *

• PCIe Gen 4 x4

PCIEX16_3 *

• PCIe 3.0 x4

PCIEX1_1, PCIEX1_2

• PCIe 3.0 x1

* Supports NVMe SSD as boot disks

M2_1, M2_2

• PCIe Gen 4 x4 *

M2_3

• PCIe Gen 4 x4 * or SATA

M2_4

• PCIe 3.0 x4 *

* Supports Intel® Volume Management Device, Intel® Optane Technology, & NVMe SSD as boot disks

4

• Supports RAID 0/1/5/10 for SATA storage devices
• Supports RAID 0/1/5 for M.2 NVMe storage devices

• Intel® Smart Response Technology
• Intel® Rapid Storage Technology
• Intel® Optane Memory

Realtek® RTL8125BG 2.5G LAN

• Support for Wake-on-LAN
• Supports Energy Efficient Ethernet 802.3az

Intel Dual Band Wireless-AX210 Wi-Fi 6E

• Supports WiFi 802.11 a/b/g/n/ac/ax
• Supports Bluetooth
• Support for dual band frequency (2.4/5GHz, 6GHz *)
• Supports MU-MIMO

*Wi-Fi 6E (6GHz band) is supported by Microsoft® Windows® 11, availability may vary based on country and region.  A 6GHz compatible router is required for 6E functionality.

Bluetooth V5.2

Realtek® ALC897 Codec

8-channel High Definition Audio

32-bit @ 192,000 Hz DAC

1

1

4

• 1 x Speaker/Line-Out
• 1 x Line-In
• 1 x Microphone

• 1 x BIOS Flashback Button

4

1 *
* For included wireless card

4

1

2 (Up to 2 ports per header)

1 (Up to 2 ports per header)

1

• 1 x CPU_FAN (Up to 24W)
• 1 x AIO_PUMP (Up to 24W)
• 4 x SYS_FAN (Up to 24W)

2 *
* Supports up to 5 NZXT RGB devices, 40 LEDs total per header.

1 *
* Supports up to 40 LEDs per header

1 *
* Supports 5050 RGB LED strips with a maximum power rating of 12V 3A (36W) and length within 2 meters.

• 1 x 24-pin ATX Power
• 1 x 8-pin ATX 12V Power
• 1 x 4-pin ATX 12V Power

• 1 x POST LEDs
• 1 x SPI TPM Header

• N5-Z69XT-B1 (Black)
• N5-Z69XT-W1 (White)

• 815671016034 (Black)
• 815671016027 (White)

• 5056547200149 (Black)
• 5056547200132 (White)
