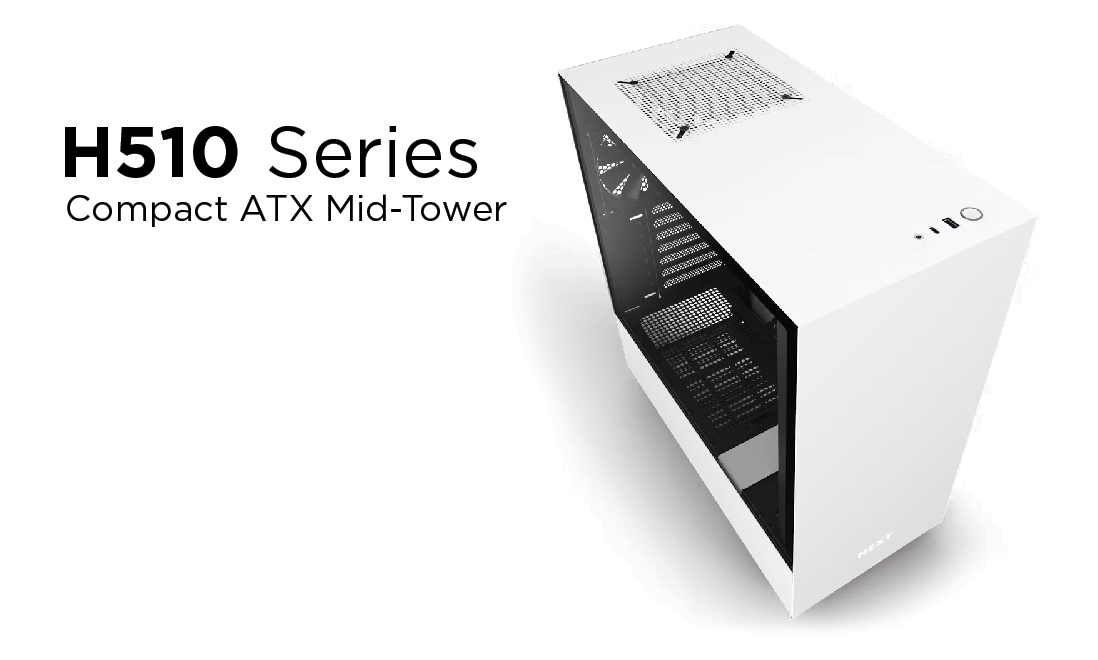

H510 Series Specs

Updated
Have more questions? Submit a request


Dimensions
Height (with Feet) 460 mm (18.11 in)
Width 210 mm (8.27 in)
Depth 428 mm (16.85 in)
Weight
  • H510 - 6.6 kg (14.55 lb)
  • H510i - 6.68 kg (15 lb)
  • H510 Elite - 7.5 kg (16.53 lb)
  • H510 Flow - 6.6 kg (14.55 lb)
General
Enclosure Type Compact ATX Mid-Tower
Motherboard Compatibility
  • ATX
  • Micro-ATX
  • Mini-ITX
Supports Back Connect Motherboards
(BTF, Project Zero, etc.)		 No
Included Controller

Smart Device V2 (H510i and H510 Elite Only)
RGB Lighting

H510i and H510 Only
Materials
  • SGCC Steel
  • Clear Tempered Glass
  • Tinted Tempered Glass (H510 Elite)
Warranty 2 Years
Clearance
CPU Cooler Height 165 mm
GPU Length

Up to 381 mm (w/o front fans or radiator)
Cable Management Clearance 19 - 23 mm
Front Fan & Radiator Clearance

Up to 60 mm
Front I/O Ports
USB 3.2 Type-A 1
USB 3.2 Gen 2x2 Type-C 1
3.5 mm Headset Jack 1
Expansion Slots
Standard 7
Vertical
  • 0 (H510, H510 Flow)
  • 2 (H510i, H510 Elite)
Vertical GPU Mounting Kit Compatible No
Drive Bays
2.5" 2 + 1
3.5" 2 + 1
Fan Support
Front
  • Up to 2 x 120 mm
  • Up to 2 x 140 mm
Top
  • 1 x 120 mm
  • 1 x 140 mm
Rear
  • 1 x 120 mm
Included Filters All Air Intakes
Radiator Support
Front
  • Up to 240 mm (120 mm base)
  • Up to 280 mm (140 mm base)
Rear
  • Up to 120 mm
Product Info
Model Number

H510

  • CA-H510B-B1 (Black)
  • CA-H510B-BR (Black/Red)
  • CA-H510B-W1 (White)

H510i

  • CA-H510i-B1 (Black)
  • CA-H510i-BR (Black Red)
  • CA-H510i-W1 (White)

H510 Elite

  • CA-H510E-B1 (Black)
  • CA-H510E-W1 (White)

H510 Flow

  • CA-H52FB-01 (Black)
  • CA-H52FW-01(White)
UPC

H510

  • 815671014757 (Black)
  • 815671014771 (Black/Red)
  • 815671014764 (White)

H510i

  • 815671014719 (Black)
  • 815671014733 (Black/Red)
  • 815671014726 (White)
  •

H510 Elite

  • 815671015105 (Black)
  • 815671015112 (White)

H510 Flow

  • 815671019578 (Black)
  • 815671019585 (White)
EAN

H510

  • 5060301695058 (Black)
  • 5060301695072 (Black/Red)
  • 5060301695065 (White)

H510i

  • 5060301695010 (Black)
  • 5060301695034 (Black Red)
  • 5060301695027 (White)

H510 Elite

  • 5060301695287 (Black)
  • 5060301695294 (White)

H510 Flow

  • 5060301699247 (Black)
  • 5060301699254 (White)



Included Fans

  H510 H510i H510 Elite H510 Flow
Front None None 2 x RGB 2 140 mm

1 x Aer F 120 mm
(Case Version)
Top

1 x Aer F 120 mm
(Case Version)

 1 x Aer F 120 mm
(Case Version)		 1 x Aer F 140 mm
(Case Version)		 None
Rear 1 x Aer F 120 mm
(Case Version)		 1 x Aer F 120 mm
(Case Version)		 1 x Aer F 120 mm
(Case Version)		 1 x Aer F 120 mm
(Case Version)



Fan Specs

Smart Device V2
Fan Channels 3 (10W max per channel)
Fan Connection Type 4-pin PWM (3-pin DC Compatible)
RGB Channels 2
RGB Connection Type 4-pin NZXT RGB
Power Connection SATA Power
Data Connection USB 2.0 Internal
Aer F 120 mm
Speed 1,200 ± 200RPM
Airflow 50.42 CFM
Noise 28 dBA
Fan Connector & Type 3-pin DC
Aer F 140 mm
Speed 1,000 ± 200RPM
Airflow 68.95 CFM
Noise 28 dBA
Fan Connector & Type 3-pin DC
Aer RGB 2 140 mm
Speed 500 - 1,500 ± 300RPM
Airflow 30.39 - 91.19 CFM
Static Pressure 0.17 - 1.52 mm-H₂O
Noise 22 - 33 dBA
Fan Connector & Type 4-pin PWM
