SATA M.2 and Other SATA Storage Troubleshooting

Have more questions? Submit a request

If you're not able to boot into a SATA Storage Device with the N7 Z370 you would need to change the SATA mode to a SATA supported mode being AHCI. Please follow these steps in order to do this:

  • The power system completely off.
  • Start system and press “DEL” or “DELETE” key on the motherboard to get into the BIOS:


  • Select “Advanced” to enter the advanced BIOS:

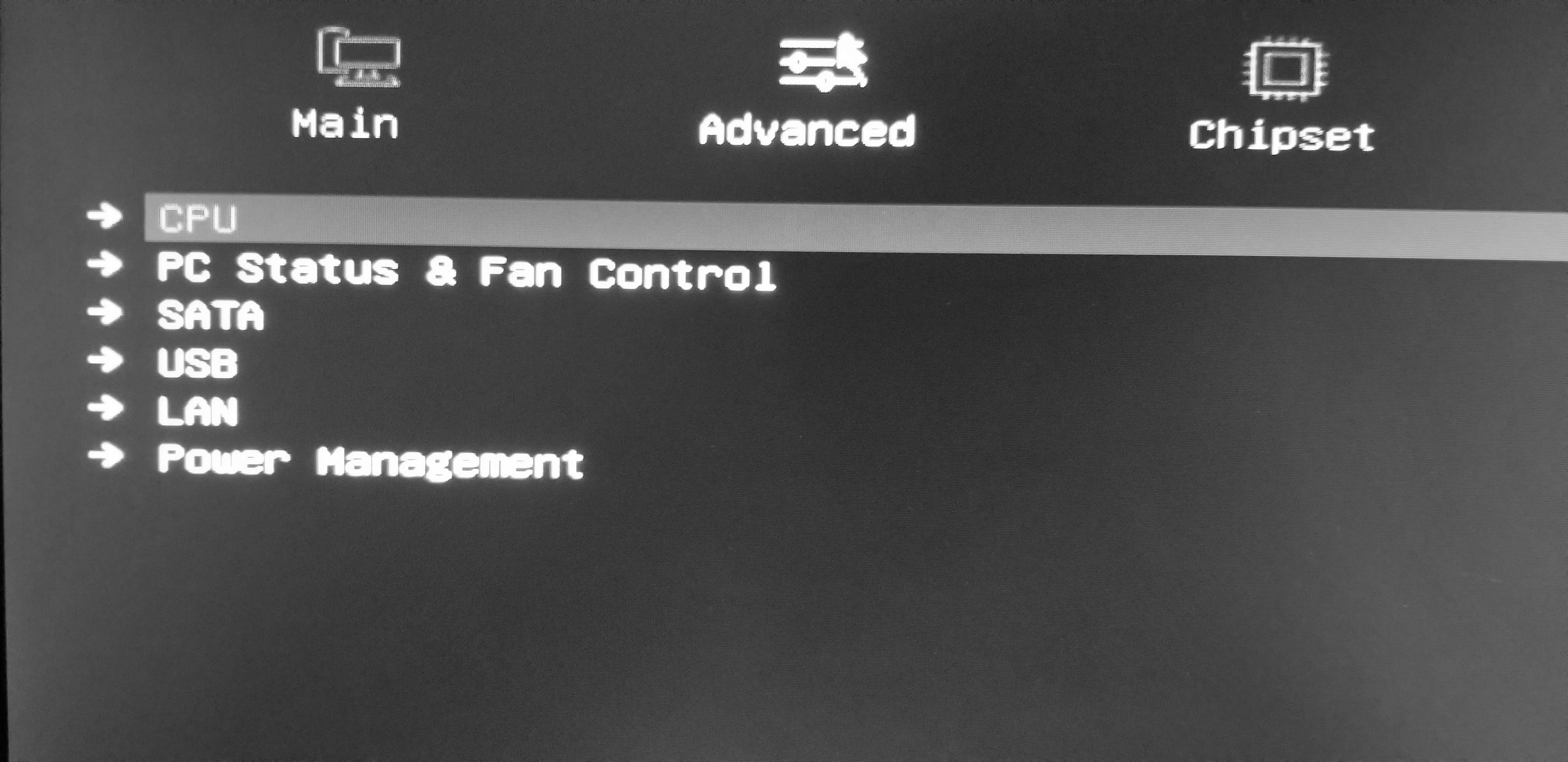

  • Select “Advanced”.
  • Select “SATA”.
  • Select “SATA MODE”.

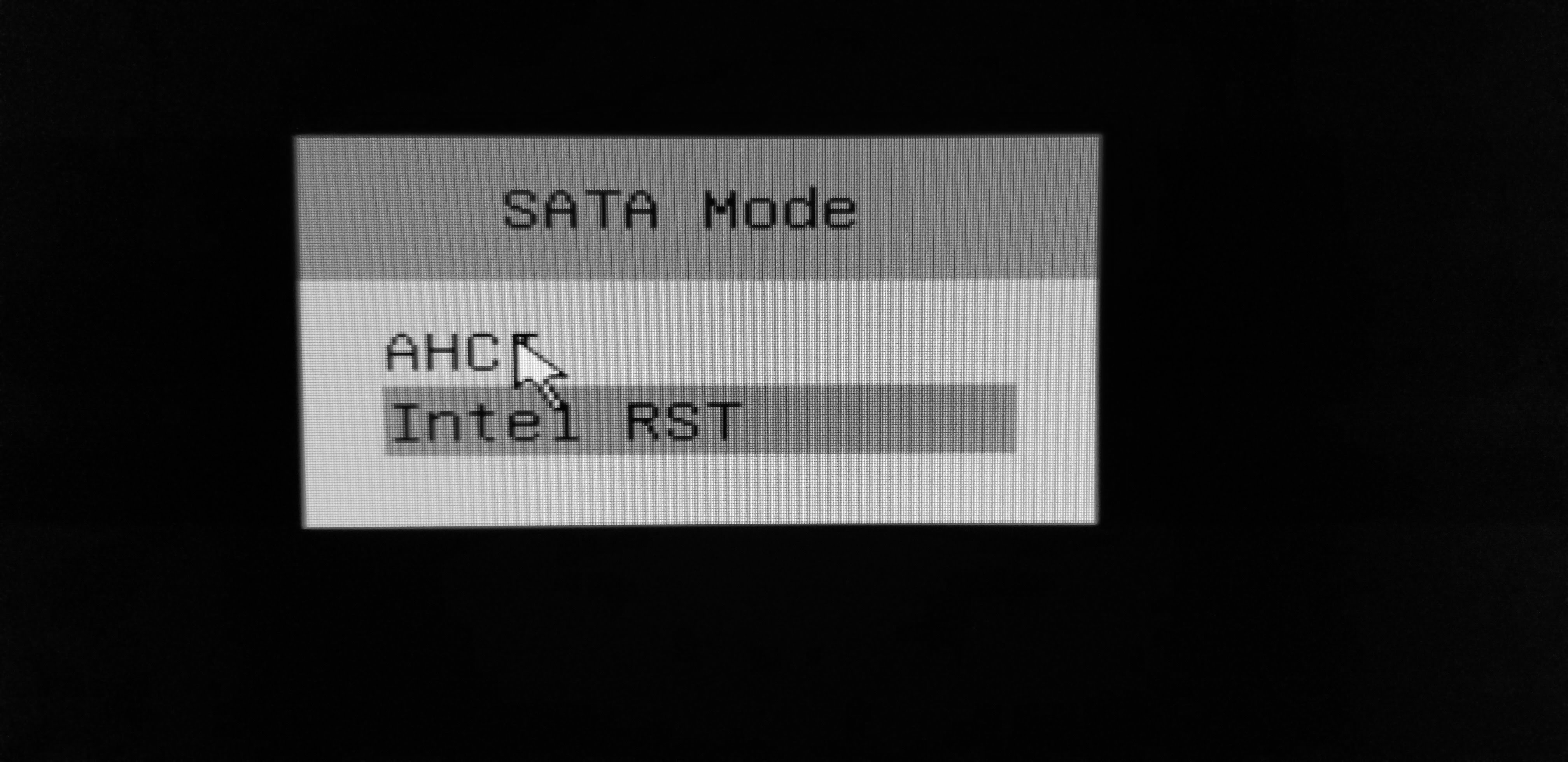

  • Select “AHCI”

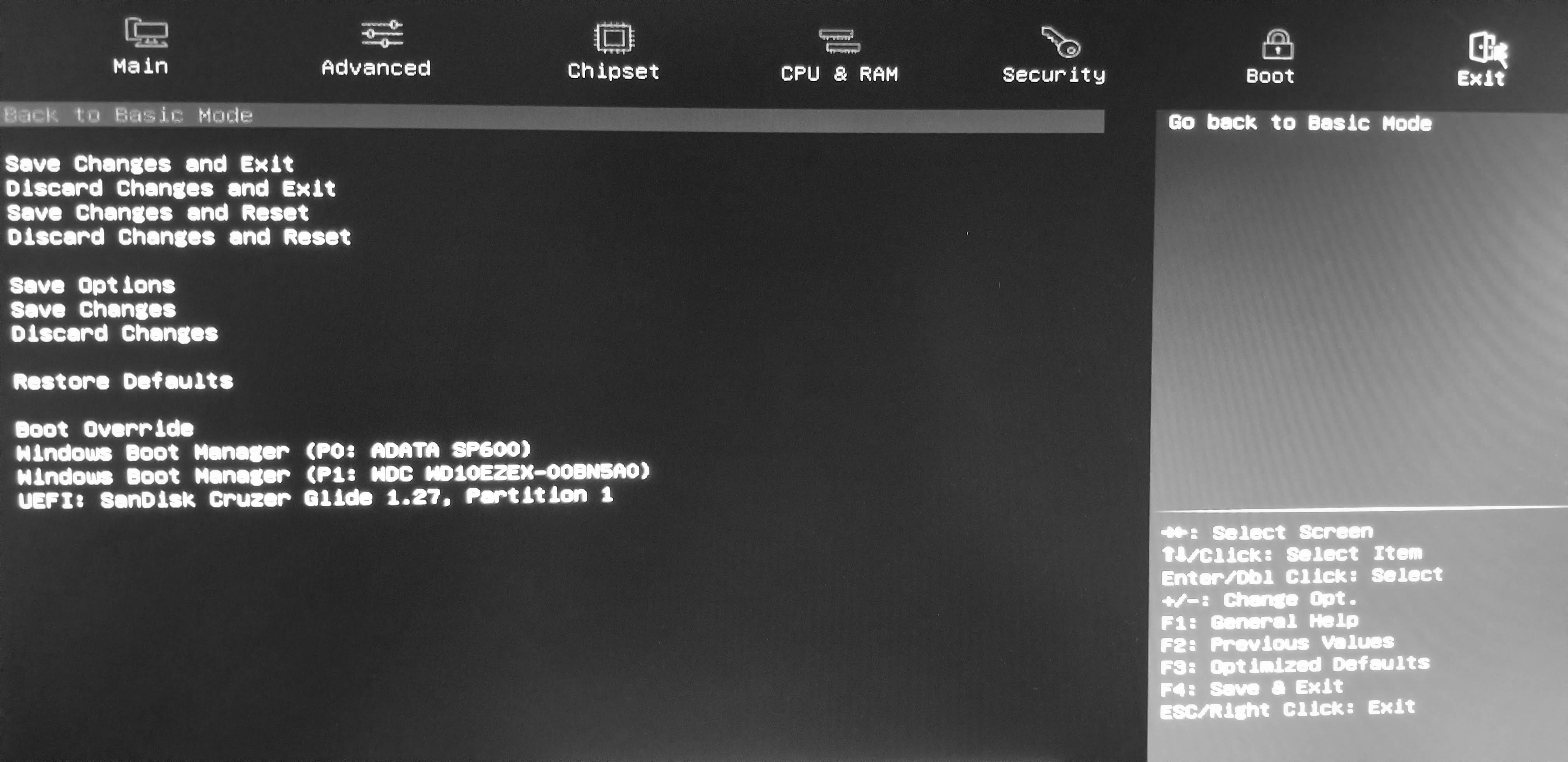

  • Then select “Exit”, followed by “Save Changes and Exit”:


  • From this point, you will be able to do the following:
    • Boot from an OS install device to install OS to an M.2 or SATA device.
    • Boot a pre-installed operating system from an M.2 or SATA device.

If you need assistance with additional troubleshooting or have any further questions, please contact our Customer Support Team.
