RGB & Fan Controller Installation Guide

Have more questions? Submit a request

Step 1) Preparing the RGB & Fan Controller for Installation

  • You can choose to either install the controller first in your build using the provided velcro and magnetic strips or install your fans/RGB accessories to the controller first
  • Ensure you have a free SATA power connection from your PSU and USB 2.0 header on your motherboard before attempting installationparts_smart.PNGcontrol_1.PNGcontroller_2.PNG

Step 2) Installing the Controller inside your build

  • First, ensure your PC is completely turned off and free of power

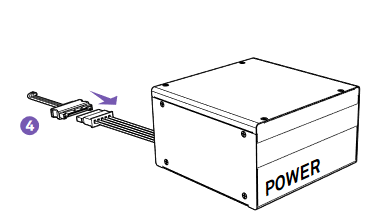

  • Once done, connect your Controller to your SATA power psu.PNG
  • Then your USB 2.0 motherboard headerusb_2.0.PNG

Step 3) Connecting your NZXT RGB Accessories to the Controller

  • Using the lighting connection cable provided with your NZXT RGB accessory, connect to one of the two  LED channels located on the side of the controller
  • You can also use any provided extension cables from the NZXT RGB accessories if it does not reach


Step 4) Connecting your case fans to the Controller

  • Connect up to three fans directly to the three channels using the connections from the fans. To connect more than three fans, use the included fan splitters. The first fan connector with 4-pins on the fan splitter will be the primary fan. Do note: Each channel can only support up to a max of 10W per channel



And you're all done! Enjoy using your new NZXT RGB & Fan Controller! If you have any additional questions or issues, please contact our customer support team at https://www.nzxt.com/customer-support!
