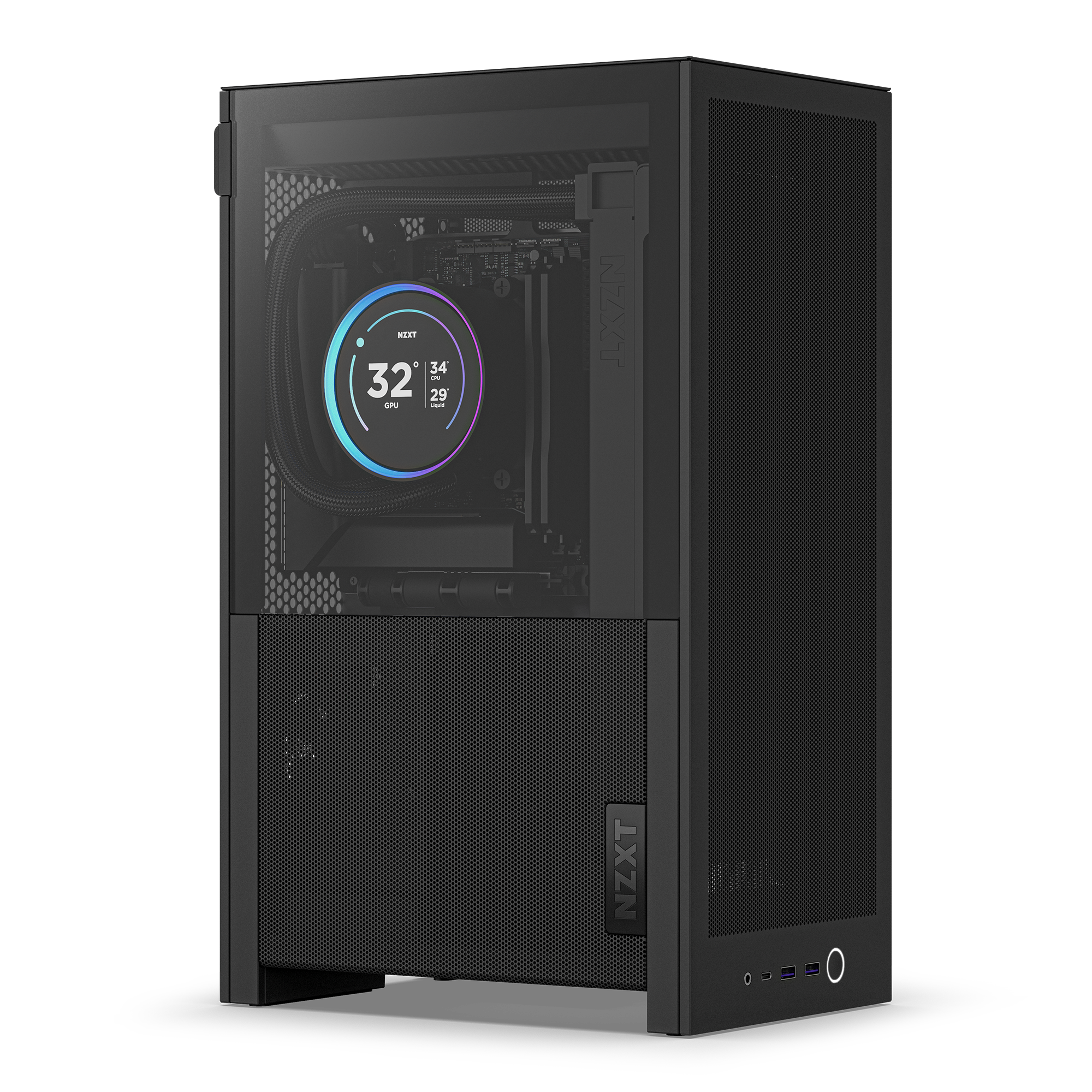

H2 Flow (2026)
|
| Afmetingen | |
| Hoogte | 435 mm (17.1 in) |
| Breedte | 181 mm (7.1 in) |
| Diepte | 263 mm (10.4 in) |
| Gewicht | 4.55 kg (10.03 lb) |
| Volume | 20.7 L |
| Algemeen | |
| Type Behuizing | Small Form Factor Behuizing |
| Moederbord Compatibiliteit | Mini-ITX |
|
Achteraansluiting Moederbord Ondersteuning? (BTF, Project Zero, etc.) |
Nee |
| Type Voeding | SFX, SFX-L |
| Materialen | Staal, Gehard Glas |
| Ventilatorondersteuning | |
| Totaal Aantal Ventilatormounts | 4 x 120 mm / 2 x 140 mm |
| Voorzijde | 2 x 120 mm / 2 x 140 mm |
| Bovenzijde | 2 x 120 mm |
| Radiatorondersteuning | |
| Voorzijde | Tot 280 mm |
| Ruimte | |
| CPU Koeler Hoogte | Tot 75 mm |
| GPU Lengte | Tot 331 mm |
| GPU Dikte | Tot 65 mm |
| GPU Breedte | Tot 150 mm |
| PSU Lengte | Tot 130 mm |
| Voorste Radiator + Ventilatordikte | Tot 60 mm |
| Panelen | |
| Voorzijde | Staal (Mesh) |
| Rechterzijde | Staal (Gesloten en Mesh) |
| Linkerzijde | Gehard Glas en Staal (Mesh) |
| Bovenzijde | Staal (Mesh) |
| Front I/O | |
| USB 3.2 Type-A | 2 |
| USB 3.2 Gen2x2 Type-C | 1 |
| Headset-aansluiting | 1 |
| Uitbreidingssloten | |
| Standaard | N.v.t. |
| Verticaal | 3 (Ondersteunt één (1) PCIe Gen 5.0 x16-apparaat via Riser-kabel) |
| Drive Bays | |
| 2.5" | 2 (tot 8.5 mm) |
| 3.5" | N.v.t. |
| Riser-kabel | |
| Compatibiliteit | PCIe Gen 5.0 x16 |
| Lengte | 260 mm |
| Productinformatie | |
| Garantie | 2 Jaar |
| Modelnummer | CI-H21FB-01 |
| UPC | 810074848404 |
| EAN | 5056547208800 |
Meegeleverde Ventilatoren
| Locatie | Model |
| Bovenzijde | 2 x F120Q Airflow Fan (Behuizingsversie) |
Ventilatorspecificaties
| F120Q Airflow Fan (Behuizingsversie) | |
| Snelheid | 1.350 ± 150 RPM |
| Luchtstroom | 60.2 CFM |
| Statische Druk | 1.05 mm - H₂O |
| Geluid | 24.1 dBA |
| Ventilatoraansluiting & Type | 3-pin DC |
